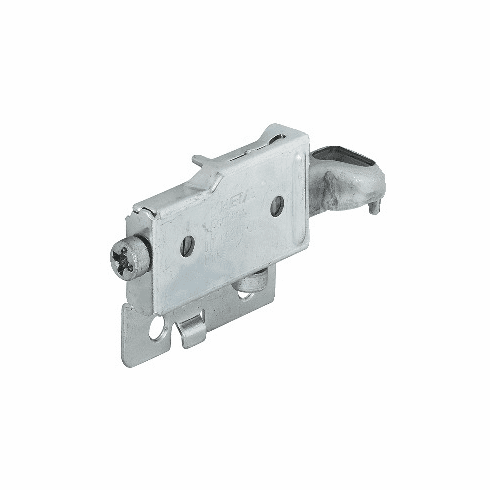

Hafele 290.02.714 Cabinet Hanger, Screw-Mounted Right Hand, For use with Euro Screw 013.02.904

Product Information

• Description

  Manufacturer: Hafele
  Item: 290.02.714

  Product Title: Cabinet Hanger, Screw-Mounted, Visible inside the cabinet, Right Hand, For use with Euro Screw 013.02.904

  Category: Cabinet Hanger, Screw-Mounted, Visible inside the cabinet

  Item Details …

  - Sold in pieces. Left hand and right hand hangers are sold separately

  - For use with wall rail 290.11.901

  - Hardware is visible when installed

  - Cover caps available. Sold separately.

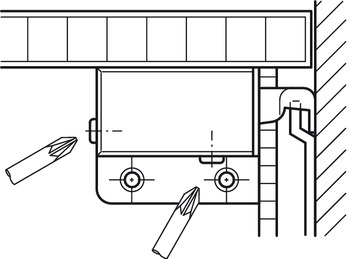

  - The screwdriver can be inclined by ± 15° which allows comfortable adjustment of the screws

  - Color/finish : Zinc plated

  - Version : Visible inside the cabinet

  - For internal cabinet height : 26 - 32"

  - Area of application : For hanging cabinets or closets

  - Load bearing capacity : Per pair: 286 lbs

  - Load bearing capacity per pair : 130.00 kg

  - Material : Steel

  - Installation reference : Screw mounted

  - Standard : The load bearing capacity of the cabinet hanger is 45 kg/piece in compliance with the DIN EN 15939 standard requirements.

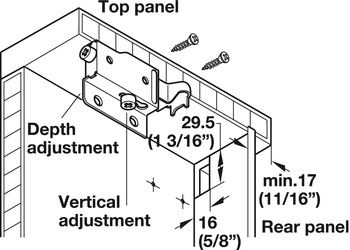

  - Adjustment facility : Height adjustment: <16 mm, Depth adjustment facility: <14 mm

  - Order reference

  - Please note the safety information for cabinet hangers.
