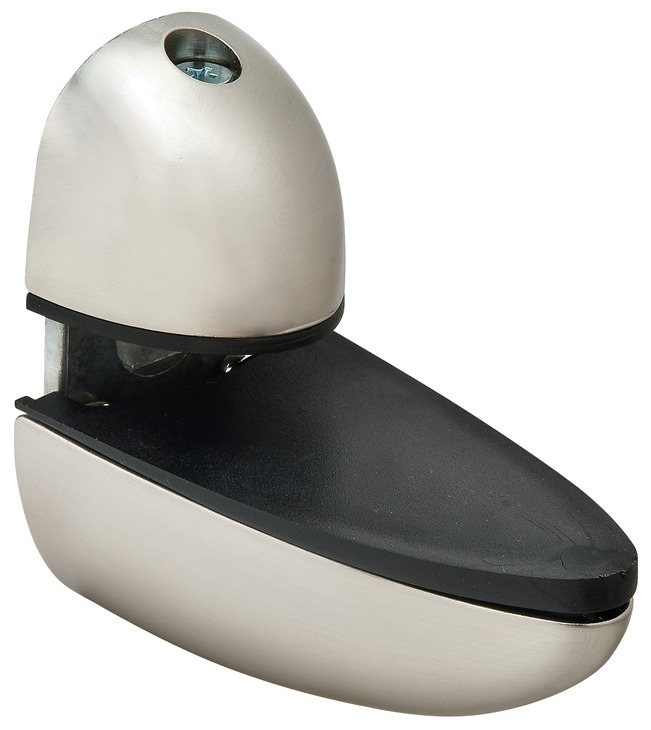

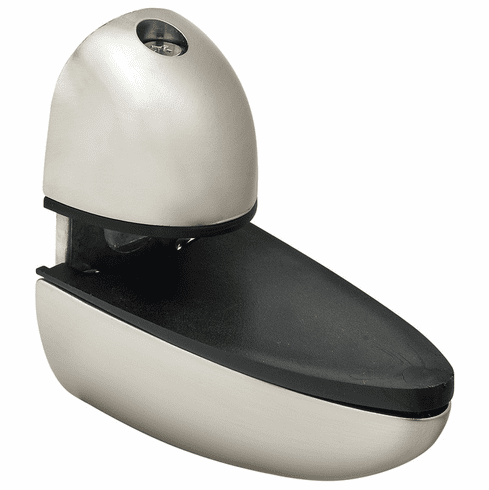

Hafele 287.59.000 Clamping Shelf Bracket, for 4-30 mm Shelf Thickness Max. shelf depth 250 mm, Stainless steel color

Product Information

• Description

  Hafele 287.59.000 Clamping Shelf Bracket, for 4-30 mm Shelf Thickness
  Max. shelf depth 250 mm, Stainless steel color

  Note: This product can only be purchased in minimum quantity of 2

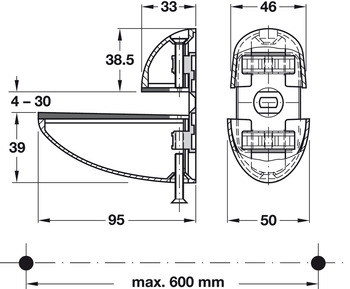

  For shelf thickness : 4-30 mm

  For shelf depth : max. 250 mm

  Load bearing capacity : (66 lbs) 30 kg

  Adjustment : Vertically & horizontally adjustable

  Material : Zinc alloy & black plastic



  Supplied with :

  Packing is 2 pieces (2 pieces needed for one shelf)

  Mounting hardware included





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.67-11.67.pdf

  Hafele 287.59.000, 287-59-000, 28759000, 287.59


  Specifications/Hafele Catalog - Page# FC11.75: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Installation Manuals

  Click: :TCH_Furniture_Cabinetry_Hardw
