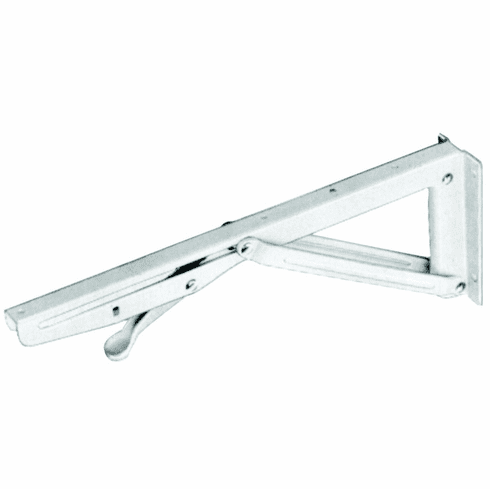

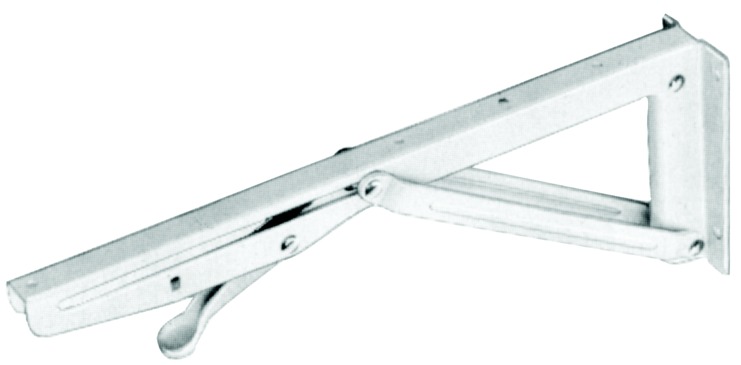

Hafele 287.49.724 Folding Bracket, with Locking Device in Supporting Arm Load capacity up to 110 lbs., White

Product Information

• Description

  Manufacturer: Hafele
  Item: 287.49.724

  Product Title: Folding Bracket, with Locking Device in Supporting Arm, Load capacity up to 110 lbs., White

  Category: Folding Bracket, with Locking Device in Supporting Arm, Load capacity up to 110 lbs.

  Item Details …

  - To fold, lift slightly (to release the safety device). Press the release lever and the bracket will fold down.

  - For table top, use #6 pan head

  - For wall-mounting, use #10 pan head

  - Load bearing capacity per item : 50.00 kg

  - Load bearing capacity : 110 lbs per pc.

  - Version : Folding

  - Material : Steel

  - Note on load bearing capacity : (110 lbs.) 50

  - Version : With locking device in supporting arm

  - Order reference

  - Priced per piece. Minimum order quantity of 2.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.150



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.61-11.63.pdf

  Hafele 287.49.724, 287-49-724, 28749724, 287.49
