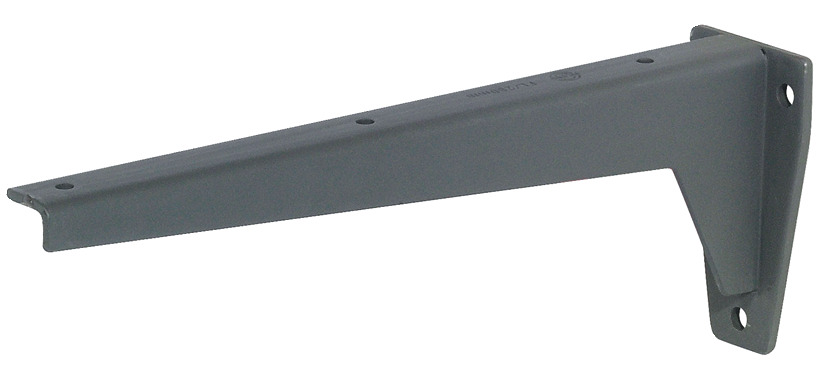

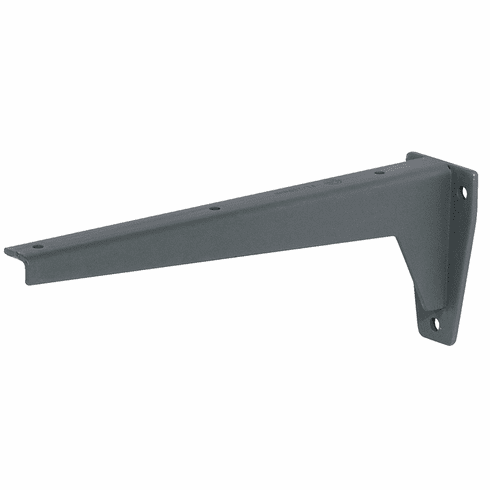

Hafele 287.45.486 Work Surface Brackets, Hebgo, Steel Dimensions (AxBxC): 680 x 100 x 220 mm, 500 kg; gray

Product Information

• Description

  Manufacturer: Hafele
  Item: 287.45.486

  Product Title: Work Surface Brackets, Hebgo, Steel, Dimensions (AxBxC): 680 x 100 x 220 mm, 500 kg; gray

  Category: Work Surface Brackets, Hebgo, Steel,

  Item Details …

  - Version : Rigid

  - Material : Steel

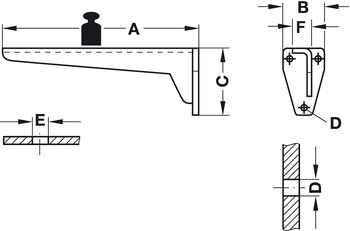

  - Note on load bearing capacity : Load capacities are approximate figures and can change depending on application. These figures were determined by static testing – distributing the weight evenly over the surface, but not extending the length of the bracket.

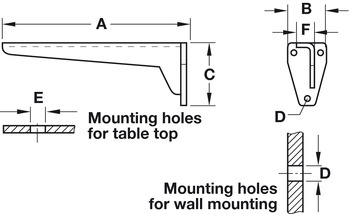

  - Installation reference : Mounting holes for table top (E): Ř4 mm and Mounting holes for wall mounting (D): Ř6 mm


  Additional Information …

  Tested distance between two brackets:With load bearing capacity 75 kg/piece: 600–750 mmWith load bearing capacity 250 kg/piece: 850–950 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.146



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.60-11.61.pdf

  Hafele 287.45.486, 287-45-486, 28745486, 287.45


  Specifications/Hafele Catalog - Page# FC11.68: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
