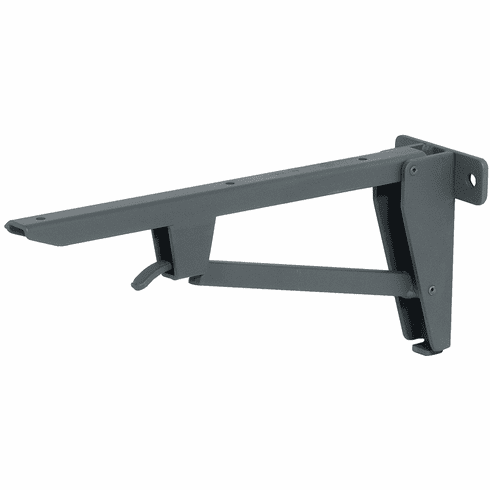

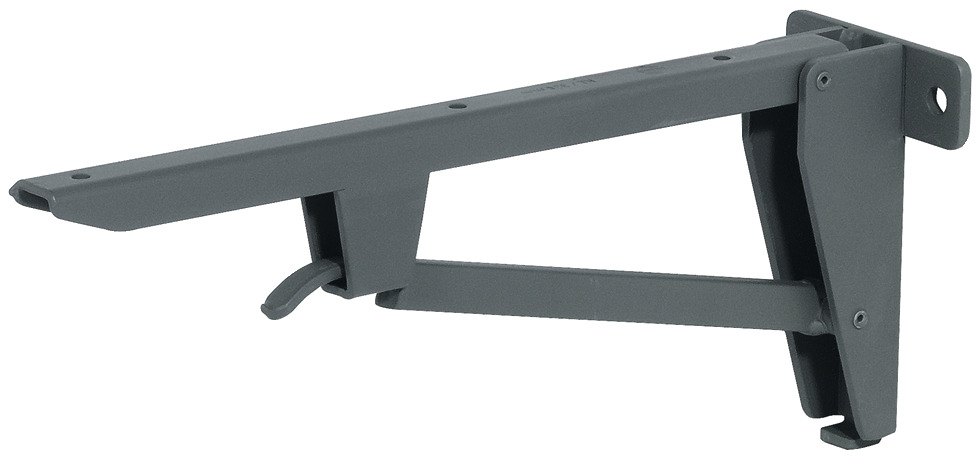

Hafele 287.42.449 Folding Table Bracket, Hebgo, Light-Duty Steel, Dimensions (AxBxC): 680 x 82 x 178 mm, gray primed

Product Information

• Description

  Manufacturer: Hafele
  Item: 287.42.449

  Product Title: Folding Table Bracket, Hebgo, Light-Duty, Steel, Dimensions (AxBxC): 680 x 82 x 178 mm, gray primed

  Category: Folding Table Bracket, Hebgo, Light-Duty, Steel

  Item Details …

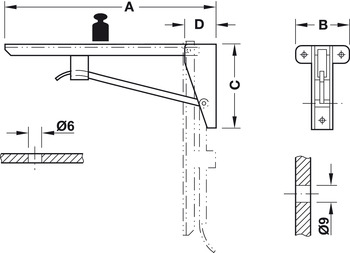

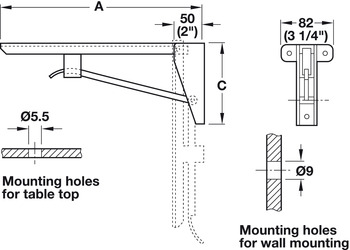

  - Load bearing capacity per item : 75.00 kg

  - Width : 82.00 mm

  - Dim. D : 50.00 mm

  - Load bearing capacity : Per pair: 330 lbs

  - Color/finish : Gray, primed

  - Version : FoldingWith locking mechanism

  - Material : Steel

  - Load bearing capacity per pair : 150.00 kg

  - Note on load bearing capacity : Per pair: (330 lbs.) 150 kg

  - Installation reference : Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.

  - Version : With locking mechanism


  Additional Information …

  Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.149



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.63-11.63.pdf

  Hafele 287.42.449, 287-42-449, 28742449, 287.42


  Specifications/Hafele Catalog - Page# FC11.71: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
