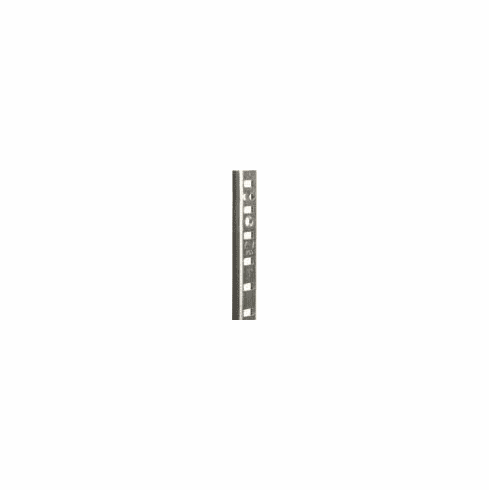

Hafele 283.19.911 Knape & Vogt, 255, heavy duty, mortise mounted pilaster standard, aluminum, 96"

Product Information

• Description

  Manufacturer: Hafele
  Item: 283.19.911

  Product Title: 255 Series Pilaster Standards, KV, 5/8" x 3/16", 23 ga. Steel, Model 255 ZC, weight capacity up to 500 lbs./pair

  Category: ,

  Item Details …

  - Adjustable in 1/2" increments

  - Made in USA

  - Stamped numbers make installation easier

  - Gauge formula : 23.00

  - Load bearing capacity : Per shelf: Up to 500 lbs

  - Model series : 255

  - Suitable for : Surface or flush mounted applications

  - Version : Adjustable in 1/2" incrementsPre-drilled screw/nail holesPre-punched staple holes

  - Adherence to standards : BHMA Grade 1 compliant

  - Width : 15.88 mm

  - Width (inch) : 5/8"

  - Depth : 4.76 mm

  - Depth (inch) : 3/16"

  - Material : Steel

  - Finish : Aluminium

  - Note : Mounting hardware is not included

  - Note on load bearing capacity : Based on per pair

  - Mounting : For surface or flush mounted applications

  - Unique selling points (USP) : Adjustable in 1/2" incrementsMade in USAStamped numbers make installation easier


  Additional Information …

  Mounting hardware is not included

• Data Sheet

  Detailed Data Sheet

• Specifications



  Please contact us for more information about this product

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  256 Series Pilaster Supports, KV, for 255 Series Pilaster Standards (choose one):


  • Weight capacity up to 500 lbs./pair, Natural aluminum Weight capacity up to 500 lbs./pair, zinc; model 256 ZC; 1 or 100 packing pcs Weight capacity up to 500 lbs./pair, White

    283.19.980 283.19.983 283.19.986

    Click to order Click to order Click to order



  Optional Accessories:



  • Nails for 255 Pilaster Standards, Steel
