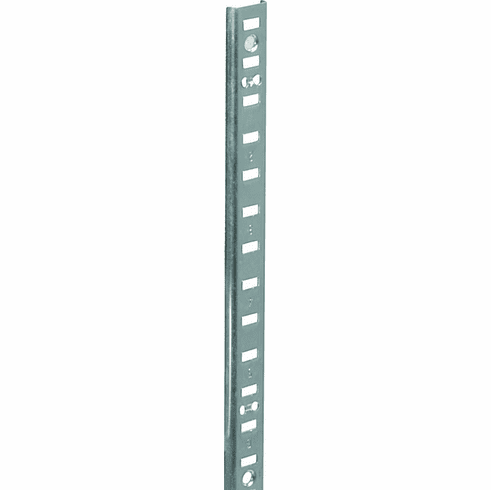

Hafele 283.18.927 SHOPTEC Pilaster standard, steel, zinc-plated, 48"

Product Information

• Description

  Manufacturer: Hafele
  Item: 283.18.927

  Product Title: Pilaster Standards, Shoptec, length 48"

  Category: Pilaster Standards, Shoptec,

  Item Details …

  - Adjustable in 12 mm (1/2") increments

  - ANSI/BHMA 156.9-2003 Grade 2 Complaint

  - Stamped numbers for easy installation

  - Model : 255 ZC 12

  - Gauge formula : 21.00

  - Load bearing capacity : 100 lbs

  - Version : Heavy dutyPre-punched staple holesPre-drilled screw holes

  - Unique selling points (USP) : Adjustable in 12 mm (1/2") incrementsANSI/BHMA 156.9-2003 Grade 2 ComplaintStamped numbers for easy installation

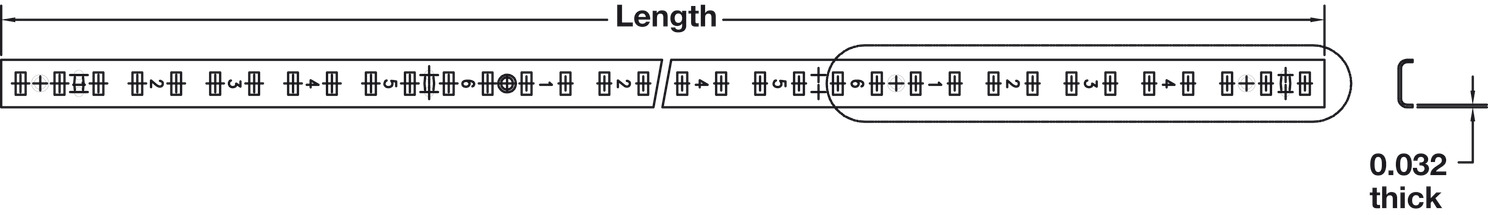

  - Width : 16.00 mm

  - Width (inch) : 5/8"

  - Depth : 5.00 mm

  - Depth (inch) : 3/16"

  - Material : Steel

  - Finish : Zinc-plated

• Data Sheet

  Detailed Data Sheet
