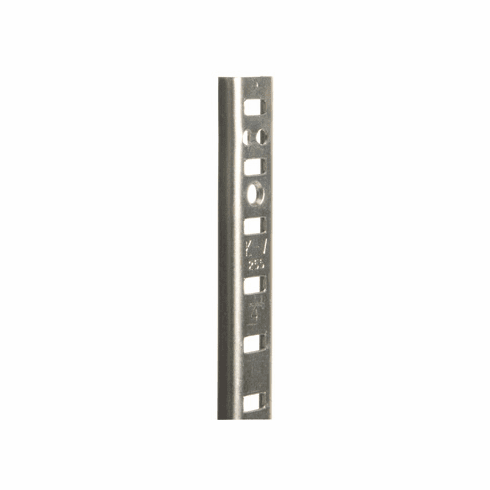

Hafele 283.18.907 255 Series Pilaster Standards, KV, 5/8" x 3/16", 23 ga. Steel, Model 255 ZC

Product Information

• Description

  Manufacturer: Hafele
  Item: 283.18.907

  Product Title: 255 Series Pilaster Standards, KV, 5/8" x 3/16", 23 ga. Steel, Model 255 ZC, weight capacity up to 500 lbs./pair, length 48"; zinc

  Category: 255 Series Pilaster Standards, KV, 5/8" x 3/16", 23 ga. Steel, Model 255 ZC, weight capacity up to 500 lbs./pair

  Item Details …

  - Adjustable in 1/2" increments

  - Made in USA

  - Stamped numbers make installation easier

  - Gauge formula : 23.00

  - Load bearing capacity : Per shelf: Up to 500 lbs

  - Model series : 255

  - Suitable for : Surface or flush mounted applications

  - Version : Adjustable in 1/2" incrementsPre-drilled screw/nail holesPre-punched staple holes

  - Unique selling points (USP) : Adjustable in 1/2" incrementsMade in USAStamped numbers make installation easier

  - Adherence to standards : BHMA Grade 1 compliant

  - Width : 15.88 mm

  - Width (inch) : 5/8"

  - Depth : 4.76 mm

  - Depth (inch) : 3/16"

  - Material : Steel

  - Finish : Zinc

  - Note : Mounting hardware is not included

  - Note on load bearing capacity : Based on per pair

  - Mounting : For surface or flush mounted applications


  Additional Information …

  Mounting hardware is not included

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.67



• Specifications

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  256 Series Pilaster Supports, KV, for 255 Series Pilaster Standards (choose one):


  • Weight capacity up to 500 lbs./pair, Natural aluminum Weight capacity up to 500 lbs./pair, zinc; model 256 ZC; 1 or 100 packing pcs Weight capacity up to 500 lbs./pair, White

    283.19.980 283.19.983 283.19.986

    Click to order Click to order Click to order



  Optional Accessories:



  • Nails for 255 Pilaster Standards, Steel
