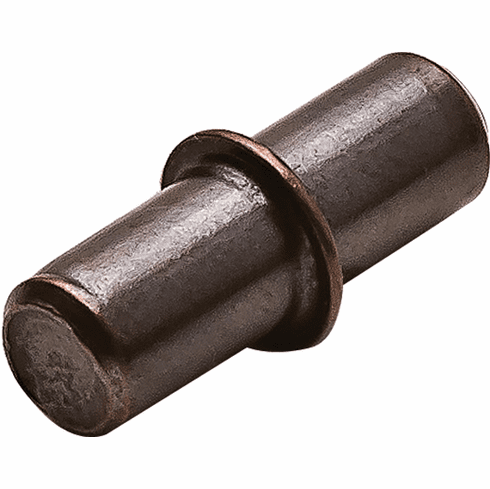

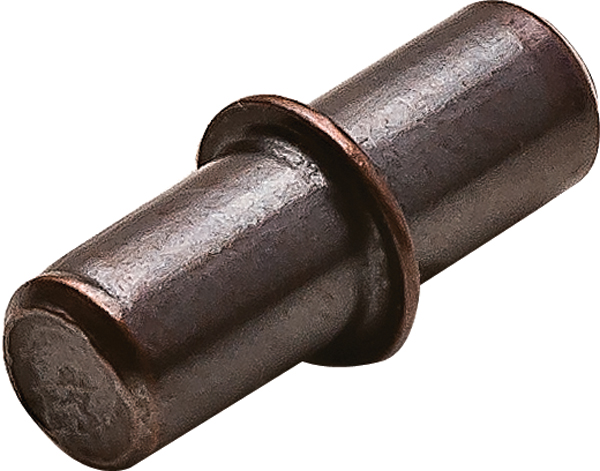

Hafele 282.43.101 Shelf Support with Collar, steel, bronzed, 5mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.43.101

  Product Title: Shelf Support, Ø5 mm, Steel, load-bearing capacity 75 lbs, with lip, Bronzed

  Category: Shelf Support, Ø5 mm, Steel, load-bearing capacity 75 lbs, with lip

  Item Details …

  - Area of application : for wooden shelves

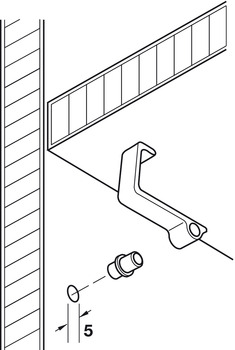

  - Installation : For insert fitting

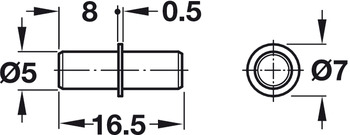

  - For drill hole Ø : 5.00 mm

  - Length : 16.50 mm

  - Pin length : 8.00 mm

  - Material : Steel

  - Adherence to standards : In compliance with DIN EN 1727:1998-06

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.112



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.68-11.76.pdf

  Hafele 282.43.101, 282-43-101, 28243101, 282.43


  Specifications/Hafele Catalog - Page# FC11.84: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
