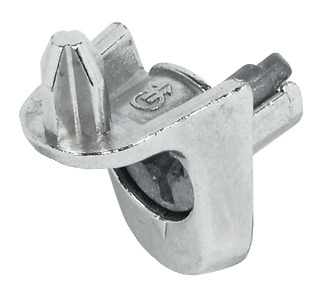

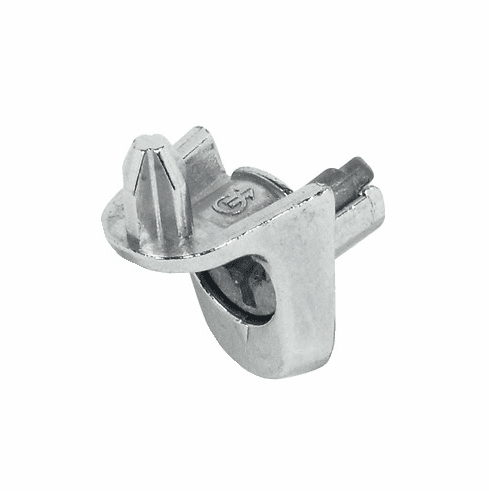

Hafele 282.26.715 Shelf Support, for 5 mm Hole Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.26.715

  Product Title: Shelf Support, for Ø5 mm Hole, Steel, load-bearing capacity 80 kg (in compliance with DIN EN 1727:1998-06), with lip, Nickel-plated

  Category: Shelf Support, for Ø5 mm Hole, Steel, load-bearing capacity 80 kg (in compliance with DIN EN 1727:1998-06), with lip, Nickel-plated

  Item Details …

  - For insertion and tightening into a drilled hole

  - Area of application : for wooden shelves

  - Color/finish : nickel plated

  - Installation : For insert fitting

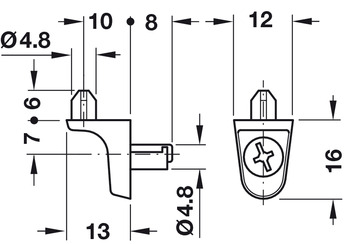

  - For drill hole Ø : 5.00 mm

  - Distance fixing lug : 10.00 mm

  - Support size : 7.00 mm

  - Pin length : 8.00 mm

  - Version : With fixing lug as shelf security feature

  - Material : Zinc alloy

  - Load bearing capacity per item : 12.50 kg

  - Load bearing capacity with 4 shelf supports : 50.00 kg

  - Note on load bearing capacity : tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test

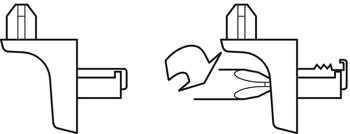

  - Installation reference : Tightening by a 180° turn of the clamping screw; therefore avoiding surface damage to the drill holeFor inserting into drill hole ? 5 mmAvoid surface damage to the hole by tightening with screw


  Additional Information …

  Not suitable for hardwood
