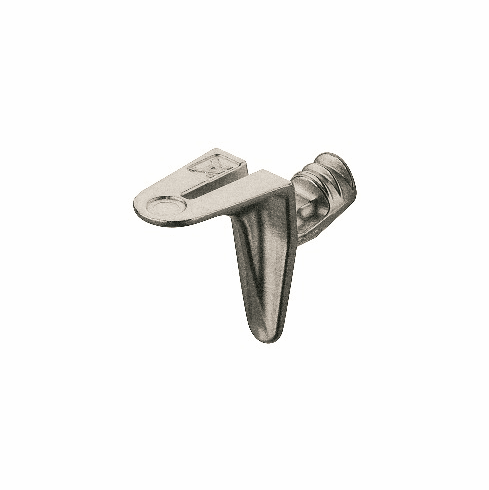

Hafele 282.24.718 Shelf Support, Offset, 75 kg With 3 wedged ribs, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.24.718

  Product Title: Shelf Support, Offset, 75 kg, With 3 wedged ribs, Nickel-plated

  Category: Shelf Support, Offset, 75 kg, With 3 wedged ribs, Nickel-plated

  Item Details …

  - Patented design assures minimum lowering of shelf under heavy weight

  - Area of application : for wooden shelves

  - Color/finish : nickel plated

  - Installation : For insert fitting

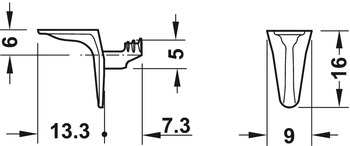

  - For drill hole Ø : 5.00 mm

  - Support size : 6.00 mm

  - Pin length : 7.30 mm

  - Version : With three wedged ribs

  - Material : Zinc alloy

  - Load bearing capacity per item : 9.40 kg

  - Load bearing capacity with 4 shelf supports : 37.60 kg

  - Note on load bearing capacity : Per piece

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.114



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.68-11.76.pdf
