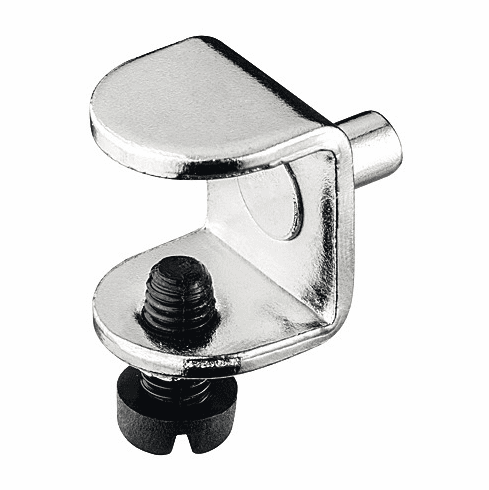

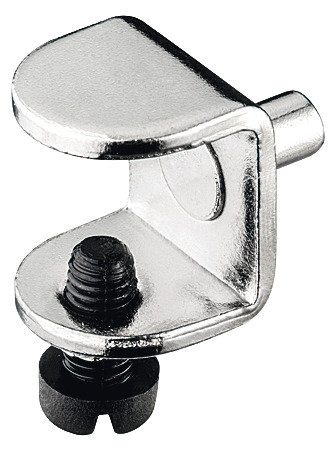

Hafele 282.20.724 Glass Shelf Support, with Safety Locking Screw, Steel for 13 mm glass thickness, Nickel plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.20.724

  Product Title: Glass Shelf Support, with Safety Locking Screw, Steel, for 13 mm glass thickness, Nickel plated

  Category: Glass Shelf Support, with Safety Locking Screw, Steel, for 13 mm glass thickness, Nickel plated

  Item Details …

  - Area of application : for glass shelves

  - Color/finish : Black, nickel plated

  - Installation : For insert fitting

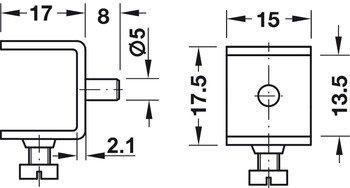

  - For drill hole Ø : 5.00 mm

  - For glass thickness :

  - Pin length : 8.00 mm

  - Version : With safety locking set screw

  - Material : Steel


  Additional Information …

  To ensure that the set screw functions correctly, the shelf supports must be mounted with the set screw on the top. If the locking screw is on the bottom, the shelf will load it and could cause it to loosen.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.125



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.79-11.82.pdf

  Hafele 282.20.724, 282-20-724, 28220724, 282.20
