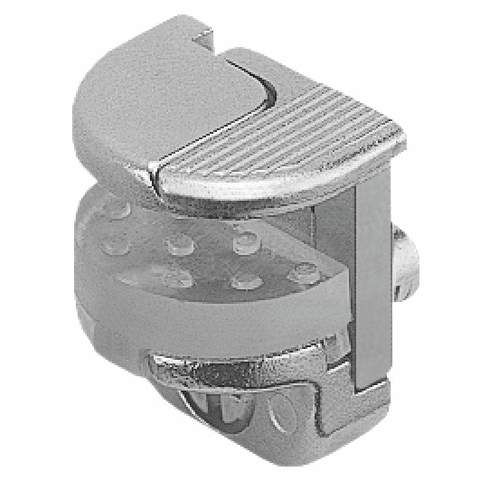

Hafele 282.13.711 Glass Shelf Support, for Glass Thickness of 6/8/10 mm For insertion and tightening in a pre-drilled hole, Nickel plated
Product Information
Description
Manufacturer: Hafele
Item: 282.13.711
Product Title: Glass Shelf Support, for Glass Thickness of 6/8/10 mm, For insertion and tightening in a pre-drilled hole, Nickel plated
Category: Glass Shelf Support, for Glass Thickness of 6/8/10 mm, For insertion and tightening in a pre-drilled hole, Nickel plated
Item Details …

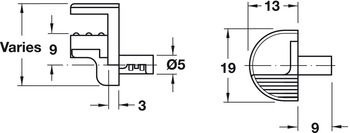

- Shelf width must be 6 – 7 mm less than the inside cabinet width

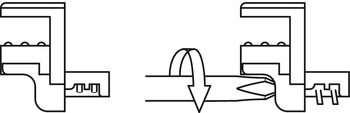

- For insertion and tightening in a drilled hole
- Area of application : for glass shelves
- Installation : For plug fitting
- For drill hole Ø : 5.00 mm
- For glass thickness : 6–10 mm
- Support size : 9.00 mm
- Pin length : 9.00 mmData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_11.79-11.82.pdfHafele 282.13.711, 282-13-711, 28213711, 282.13
Specifications/Hafele Catalog - Page# FC11.88:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Connectors & Shelf Supports Catalog
