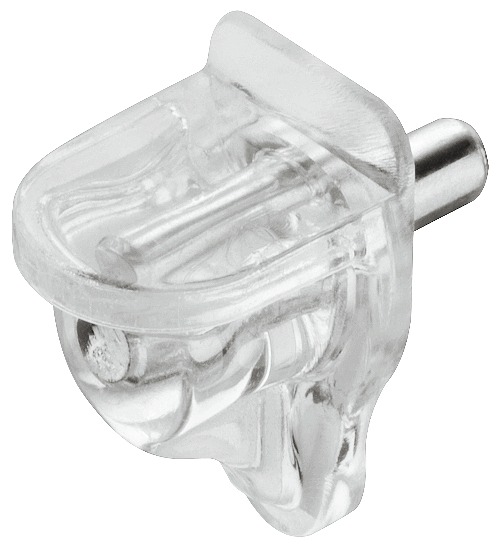

Hafele 282.12.403 Shelf Support, 3 mm 10 mm depth, transparent

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.12.403

  Product Title: Shelf Support, Ø3 mm, for wooden and glass shelves, load bearing capacity 8 kg per item, 10 mm depth, transparent

  Category: Shelf Support, Ø3 mm, for wooden and glass shelves, load bearing capacity 8 kg per item, 10 mm depth, transparent

  Item Details …

  - Area of application : for wooden and glass shelves

  - Color/finish : Transparent, blank

  - Installation : For insert fitting

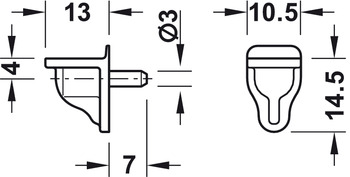

  - For drill hole Ø : 3.00 mm

  - Support size : 4.00 mm

  - Pin length : 7.00 mm

  - Version : With galvanized steel pin

  - Material : Plastic

  - Load bearing capacity per item : 2.00 kg

  - Load bearing capacity with 4 shelf supports : 8.00 kg

  - Note on load bearing capacity : 8 kg with 4 supports

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.121



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.77-11.78.pdf

  Hafele 282.12.403, 282-12-403, 28212403, 282.12


  Specifications/Hafele Catalog - Page# FC11.84: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
