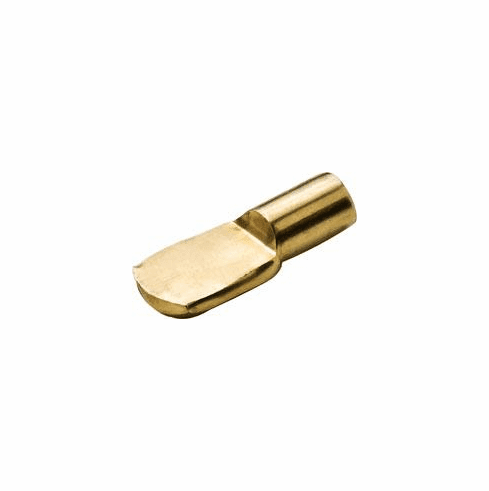

Hafele 282.04.515 Shelf Support, 5 mm Steel, Brass plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.04.515

  Product Title: Shelf Support, Ø5 mm, Steel, Brass plated

  Category: Shelf Support, Ø5 mm, Steel

  Item Details …

  - Area of application : for wooden shelves

  - Installation : For insert fitting

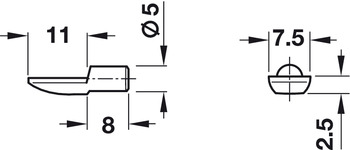

  - For drill hole Ø : 5.00 mm

  - Pin length : 8.00 mm

  - Version : ANSI/BHMA A156, Section 4.8.2, Test 7

  - Material : Steel

  - Load bearing capacity with 4 shelf supports : 80.00 kg

  - Load bearing capacity : 175 lbs

  - Note on load bearing capacity : recommended load-bearing capacity

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.112



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.68-11.76.pdf

  Hafele 282.04.515, 282-04-515, 28204515, 282.04


  Specifications/Hafele Catalog - Page# FC11.78: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
