Hafele 273.41.550 Bed Connector, for Central-Tie Bar and Slatted Frame Supports Height Adjustable, Height: 140 mm, blue galvanized
Product Information
Description
Manufacturer: Hafele
Item: 273.41.550
Product Title: Bed Connector, for Central-Tie Bar and Slatted Frame Supports, Height Adjustable, Height: 140 mm, blue galvanized
Category: Bed Connector, for Central-Tie Bar and Slatted Frame Supports, Height Adjustable, Height: 140 mm, blue galvanized
Item Details …
- Use #8 flat head screw

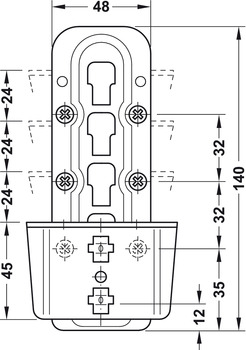

- Height : 140.00 mm
- Color/finish : Blue zinc plated

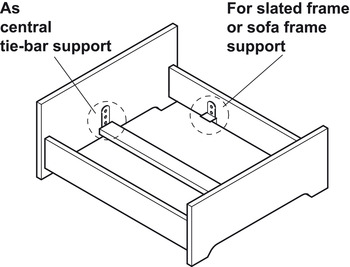

- Area of application : For single and double beds as slatted frame/sofa frame or central tie-bar support
- Material : Steel
- Installation : For screw fixing

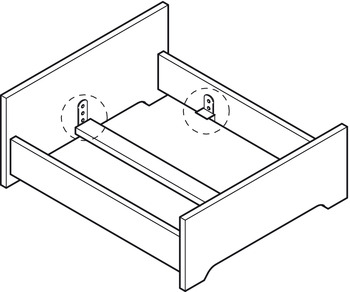

- Installation reference : When used on double beds with a 35 mm thick central tie-bar, the mounting plates must be screwed to the headboard and the foot section 5 mm higher in comparison to the side panels so that the supporting surfaces of the bracket and the central tie-bar are on one level.
- Bed connector type : central-tie bar, slatted frame

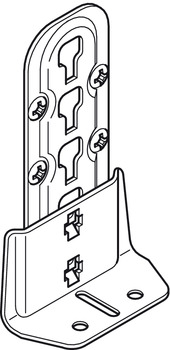

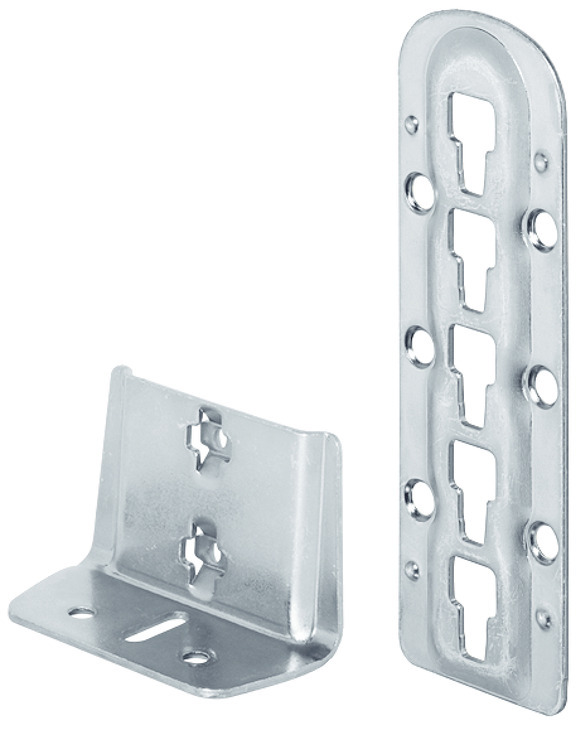

- Supplied with:
- 1 mounting plate
- 1 bracketData Sheet
