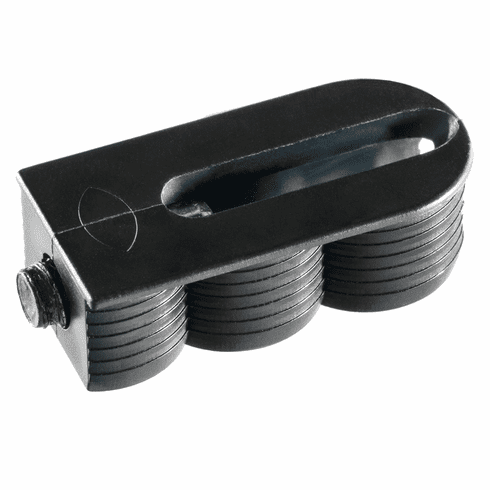

Hafele 267.91.253 Cabinet Connector, Lamello Cabineo black, routing depth: 8 mm, version cabineo 8, 500 pcs

Product Information

• Description

  Manufacturer: Hafele
  Item: 267.91.253

  Product Title: Cabinet Connector, Lamello Cabineo, black, routing depth: 8 mm, version cabineo 8, 500 pcs

  Category: Cabinet Connector, Lamello Cabineo,

  Item Details …

  - Surface processing only: For use with CNC, edge drilling not required

  - quick and easy installation due to pre-mounting of connector

  - no additional screws or dowels required

  - Easy to transport: Flat pack delivery available

  - High clamping force: Solid, positive-fit connection

  - Connection can be separated again

  - For use with or without cover cap

  - Corner and center panel connections, for use with CNC, edge drillings not required

  - Pre-mounted for quick and easy installation; additional dowels and screws are not required

  - High clamping force ensures a solid, positive-fit connection

  - Separable

  - Easily transported: Flat pack delivery

  - For use with or without cover cap

  - Material : Connector housing: Plastic, fiberglass reinforcedScrew: Steel

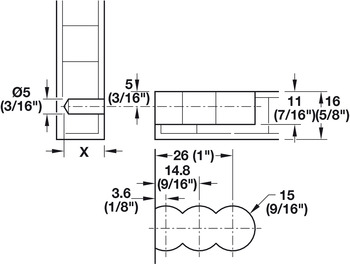

  - Note : Cabineo 8: With center panel installation, min. wood thickness is 16 mm.

  - Routing depth : 11.00 mm

  - Area of application : Connector for corner and center panel connectionsfor processing with CNC machines

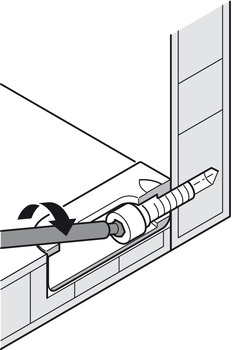

  - Installation : Press-fits into base panel and screw mounts into side panel with Ø5 mm drill hole

  - Supplied with:

  - 500 pcs


  Additional Information …

  Cabineo 8: With center panel installation, min. wood thickness is 16 mm.
