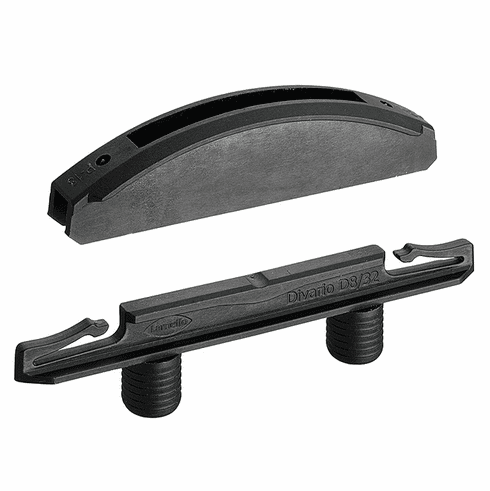

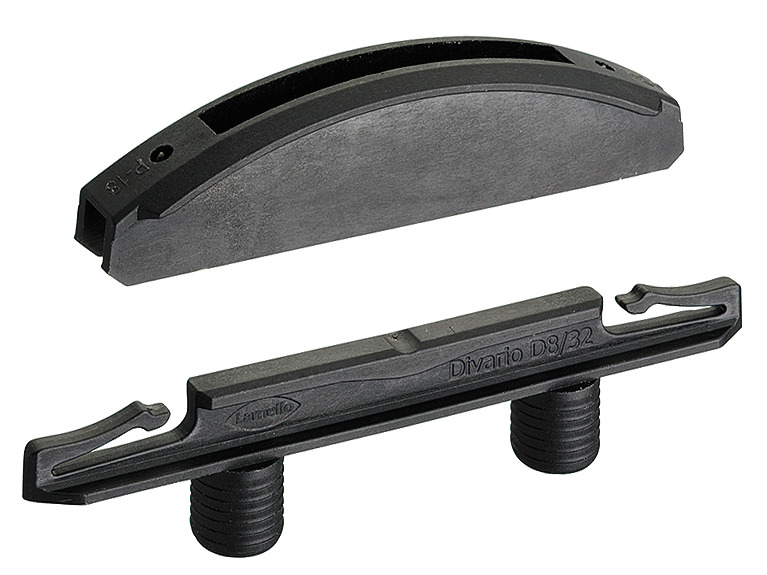

Hafele 267.91.155 Shelf Connector, Lamello Divario P-18 300 pcs

Product Information

• Description

  Manufacturer: Hafele
  Item: 267.91.155

  Product Title: Shelf Connector, Lamello Divario P-18, 300 pcs

  Category: Shelf Connector, Lamello Divario P-18,

  Item Details …

  - Resistance-free insertion until just before tension build-up

  - Connects and tightens when pushed in

  - Shelves can be removed and re-tightened repeatedly, e.g. for transportation

  - Quick installation without tools, no glue or clamping aids required

  - Concealed connection with evenly closed gaps

  - Pushes in effortlessly until tightening point is reached

  - Shelves can be removed and retightened as necessary

  - Quick, tool installation

  - Concealed connection with evenly closed gaps

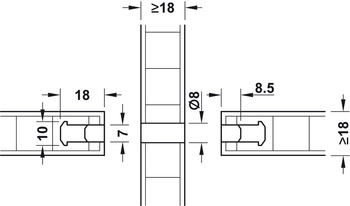

  - Connector model : Divario P-18

  - For wood thickness : ?18 mm

  - Area of application : For use as shelf connector

  - Material : Plastic

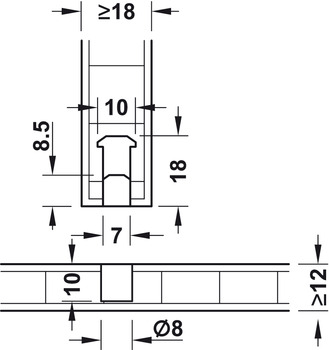

  - Installation description : Mill lengthways groove for connectorMill P-system grooveSlide in connector Knock in fixing pin using installation toolDrill Ø 8 mm for connecting boltKnocking in connecting bolt Slide in shelfConcealed, positive-fitting connection

  - Order reference

  - 1 piece = 1 each male/female


  Additional Information …

  Lengthwise and system grooves required. The Lamello Zeta P-2 biscuit joiner and HM biscuit joiner are required for installation. The profile groove can be milled with the HM biscuit joiner with a CNC machine for series manufacturing.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Lamello Divario Invisible Shelf Connector

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.58



• Videos

  Play: Lamello Divario Invisible Shelf Connector
  Play: Lamello Divario P-18 instructional video


• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Installation Tool, For Lamello Divario P-18
  • Marking Jig, For Lamello Divario P-18
  • Biscuit Joiner, Zeta P2
  • Blades for Biscuit Joiner, for Lamello P system
  • Starter Kit, Lamello Divario P-18
