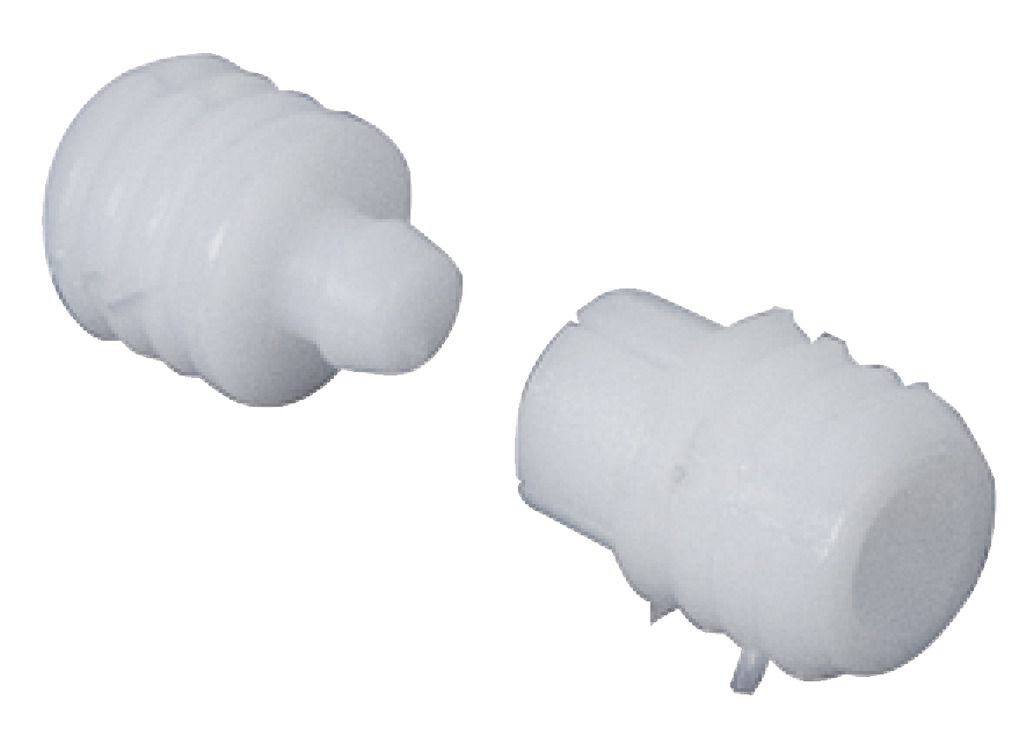

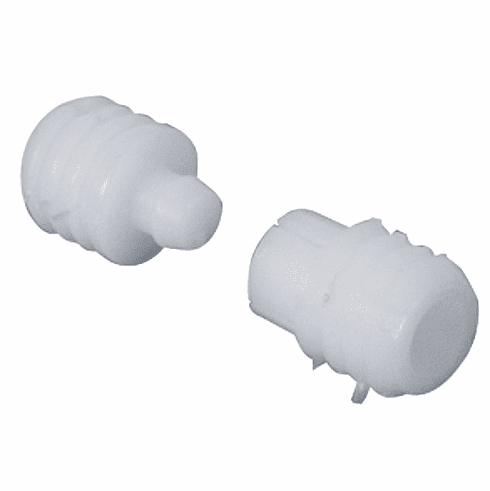

Hafele 267.20.700 Two-Piece Connector, Press-Fit, Detachable Nylon, 2-piece

Product Information

• Description

  Manufacturer: Hafele
  Item: 267.20.700

  Product Title: Two-Piece Connector, Press-Fit, Detachable, Nylon, 2-piece

  Category: Two-Piece Connector, Press-Fit, Detachable, Nylon, 2-piece

  Item Details …

  - Drill hole Ø : 10.00 mm

  - Dowel connector system version : 2-piece

  - Version : 22 pieces moulded together,Tensile load up to 15 kg

  - Material : Polyamide

  - Color/finish : Natural color

  - Functioning principle : Tensile load up to 15 kg

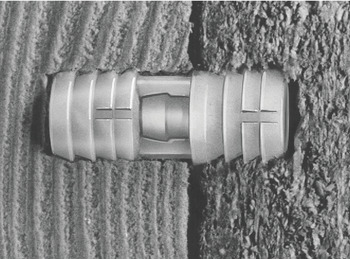

  - Installation : Tensile load up to 15 kg, not suitable for ceiling structures, can be dismantled

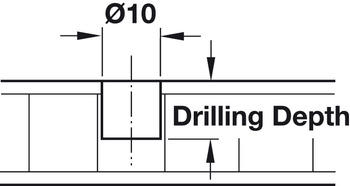

  - Installation description : Drilling depth Dfor male element: ?10 mmfor female element: ?15 mmInsert male and female element flush.


  Additional Information …

  1000 pcs.
