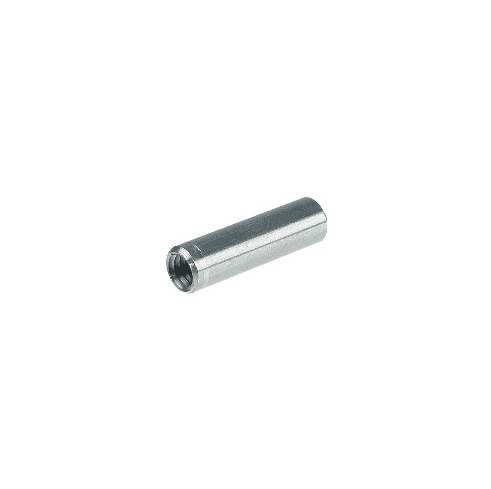

Hafele 267.00.916 Sleeve, M4 Internal Thread, Steel For wood thickness: 36-40 mm, galvanized, length L: 30 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 267.00.916

  Product Title: Sleeve, M4 Internal Thread, Steel, For wood thickness: 36-40 mm, galvanized, length L: 30 mm

  Category: Sleeve, With M4 internal thread, steel,

  Item Details …

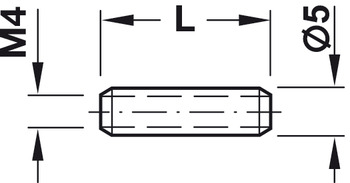

  - For drill hole Ø : 5.00 mm

  - Area of application : Can also be used as capped bolt for connectors

  - Material : Steel

  - Internal thread : M4


  Additional Information …

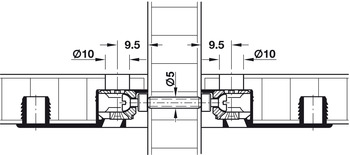

  Optional drill hole Ø 10 mm from above if connector is to be tightened from above.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.105



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.128-11.129.pdf

  Hafele 267.00.916, 267-00-916, 26700916, 267.00


  Specifications/Hafele Catalog - Page# FC11.138: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
