Hafele 264.88.340 Joint Connector Bolt, 1/4-20, Type JCB-C Black oxide, 40 mm, thread length 30 mm

Product Information

• Description

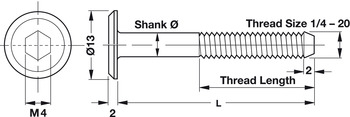

  Hafele 264.88.340 Joint Connector Bolt, 1/4-20, Type JCB-C
  Black oxide, 40 mm, thread length 30 mm



  Model series : JCB-C

  Drive : Hex M4

  Type of head : Flat head

  Head diameter : 13 mm

  Material : Steel



  Optional items:
  Hex Key, Steel


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.127-11.127.pdf

  Hafele 264.88.340, 264-88-340, 26488340, 264.88


  Specifications/Hafele Catalog - Page# FC11.137: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
