Hafele 264.76.170 Joint Connector Bolt, 1/4-20, Type JCB-B Antique bronze, 70 mm, thread length 40 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 264.76.170

  Product Title: Joint Connector Bolt, 1/4-20, Type JCB-B, Antique bronze, 70 mm, thread length 40 mm

  Category: Joint Connector Bolt, 1/4-20, Type JCB-B,

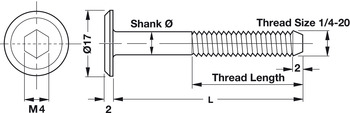

  Item Details …

  - Thread Ø : M4

  - Head Ø : 17.00 mm

  - Material : Steel

  - Type of head : Flat head

  - Drive : TS/Hex/Socket

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.104



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.127-11.127.pdf

  Hafele 264.76.170, 264-76-170, 26476170, 264.76


  Specifications/Hafele Catalog - Page# FC11.137: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
