Hafele 264.47.138 Cylinder Head Connector, Confirmat, Hex Socket, 4 mm Bronzed, length 50 mm, 15 mm
Product Information
Description
Manufacturer: Hafele
Item: 264.47.138

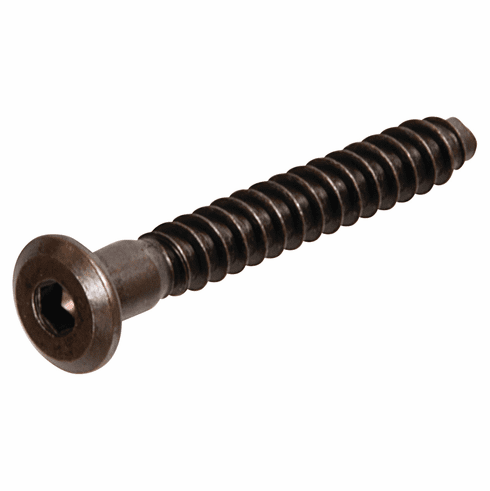

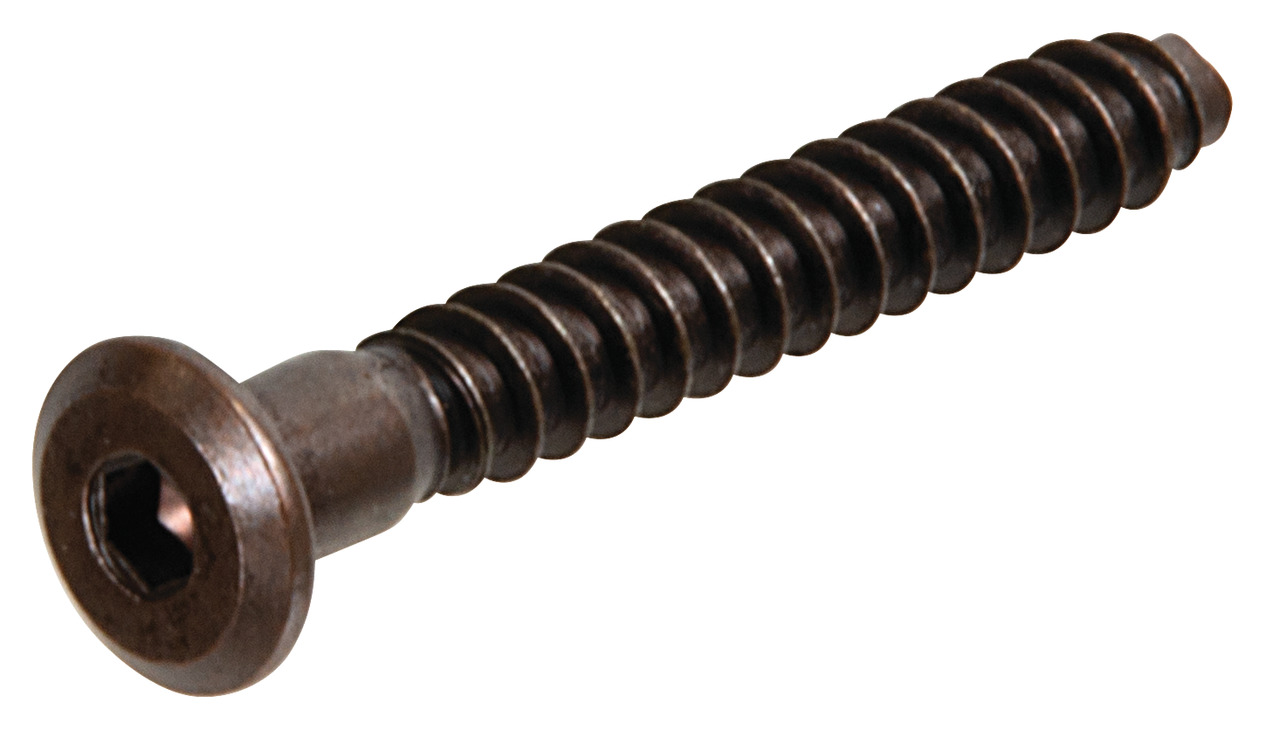

Product Title: Cylinder Head Connector, Confirmat, Hex Socket, 4 mm, Bronzed, length 50 mm, Ø 15 mm
Category: Cylinder Head Connector, Confirmat, Hex Socket, 4 mm,
Item Details …
- Long shank, deep-cut thread ensures accurate, close-fitting joints between panels
- High pull-out resistance and strength at the corners

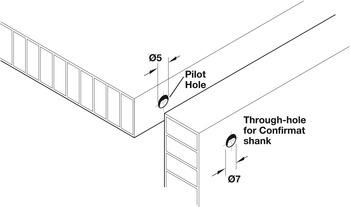

- Only a single drilling operation for side panels and shelves
- Consistently secure joints are assured even with repeated assembly and disassembly

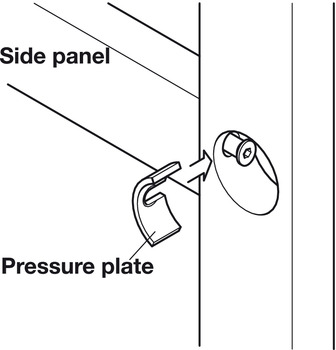

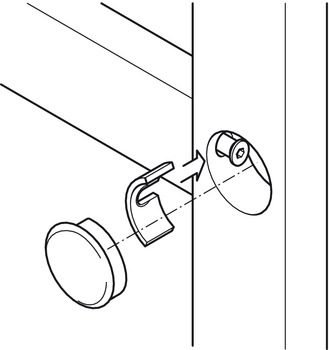

- Cover caps are not available
- Drive : Hexagon socket SW4
- Thread Ø : 7.00 mm
- Area of application : Long shank, deep-cut thread ensures accurate, close-fitting joints between panels
- Material : Steel
- Shaft Ø : 7.00 mm
- Type of head : Cylindrical head
- Supplied with:
- 1000 pcsData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_11.161-11.162.pdf
Hafele 264.47.138 Confirmat St.Bzd.Hex 4 7X50Mm (5.19X1.48X1.48 Cm)
Product Specifications:
