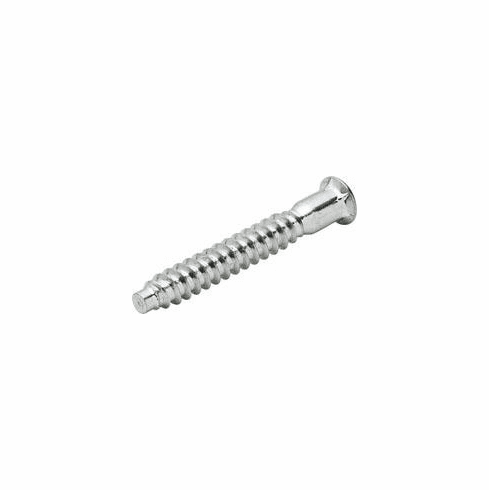

Hafele 264.44.180 Confirmat Connector, Self-Countersinking, with Tapered Tip Shank 7 mm, Head 10 mm, Pozi Drive Size 2, Length 50 mm

Product Information

• Description

  Hafele 264.44.180 Confirmat Connector, Self-Countersinking, with Tapered Tip
  Shank 7 mm, Head 10 mm, Pozi Drive Size 2, Length 50 mm

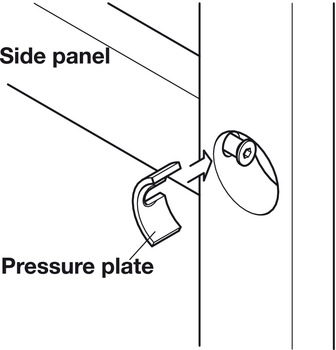

  Confirmat Connector with pressure plate

  Length : 50 mm

  Material : Steel

  Finish : Zinc-plated

  Model series : Confirmat

  Features : With tapered tip

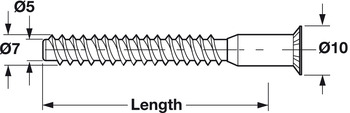

  Head diameter : 10 mm

  Shaft diameter : 7 mm

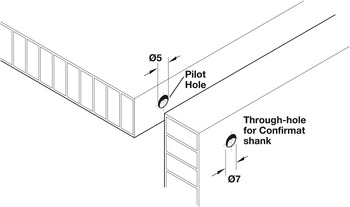

  Drill hole diameter : 5 mm



  Supplied with :

  1000 pcs



  Optional items:

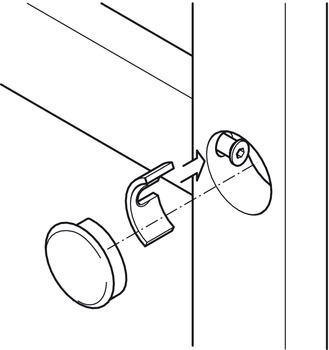

  Cover Cap, Press-Fit in Confirmat Head


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.161-11.162.pdf

  Hafele 264.44.180, 264-44-180, 26444180, 264.44


  Specifications/Hafele Catalog - Page# FC11.161: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
