Hafele 264.25.909 Universal Connecting Bracket, for 32 mm Series Holes Galvanized

Product Information

• Description

  Manufacturer: Hafele
  Item: 264.25.909

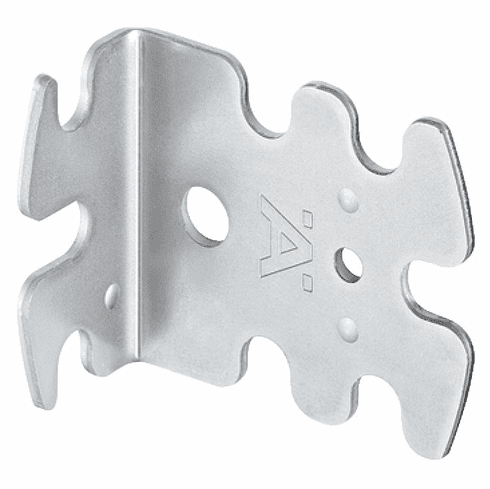

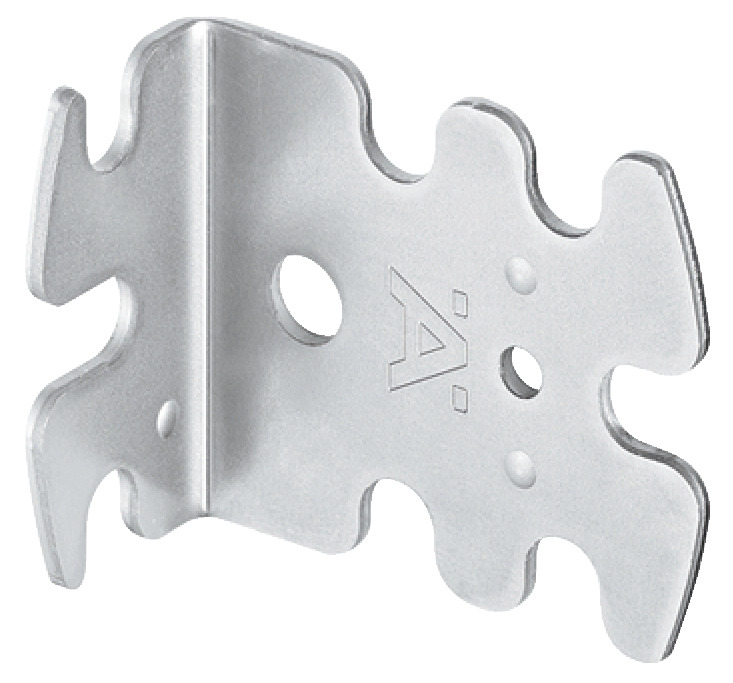

  Product Title: Universal Connecting Bracket, for 32 mm Series Holes, Steel, Galvanized

  Category: Universal Connecting Bracket, for 32 mm Series Holes, Steel

  Item Details …

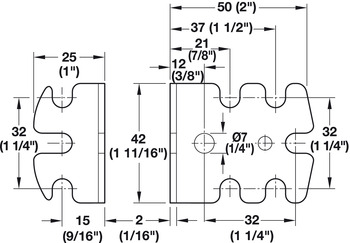

  - Material : Steel

  - Screw holes : For 32 mm series holes

  - Leg length : 50?/?25 mm

  - Width : 42.00 mm

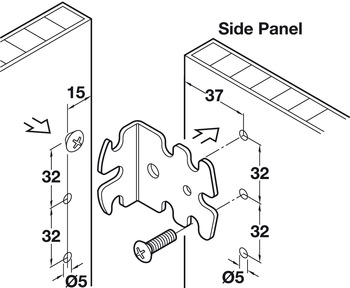

  - Area of application : For connecting cabinet elements, for attaching rear panels, for inset and overlay furniture parts

  - For series drilled holes : System 25

  - Material thickness : 2.00 mm

  - Installation : For screw fixing

  - Order reference

  - Please order screws separately.
