Hafele 263.73.609 Shelf Connector, Ixconnect Tab 15 For screw fixing, For wood thickness: 16 mm, nickel plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.73.609

  Product Title: Shelf Connector, Häfele Ixconnect Tab 15, For screw fixing, For wood thickness: 16 mm, nickel plated

  Category: Shelf Connector, Häfele Ixconnect Tab 15,

  Item Details …

  - Modern lattice design

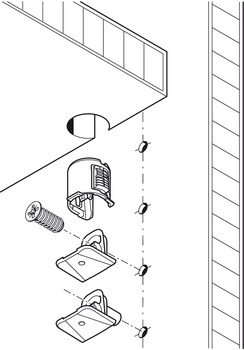

  - The boss insert locks into the shelf without an additional safety screw

  - Installs and disassembles without tools

  - The boss insert locks into the shelf without additional safety lock screw

  - Installation and disassembly without tools

  - Color/finish : Nickel plated, Nickel-plated

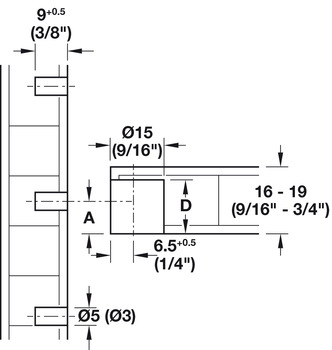

  - Area of application : for shelf thickness from 16–19 mm, to additionally secure shelf against toppling, increased stability in furniture when using the Tab 15 for screw fixing

  - Material : Support: Zinc alloyBoss insert: Plastic

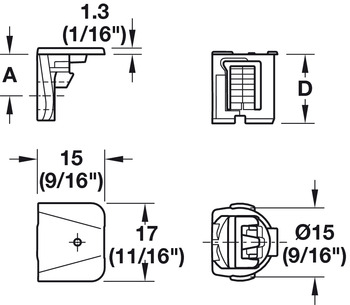

  - Drill hole Ø : 15.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.48
