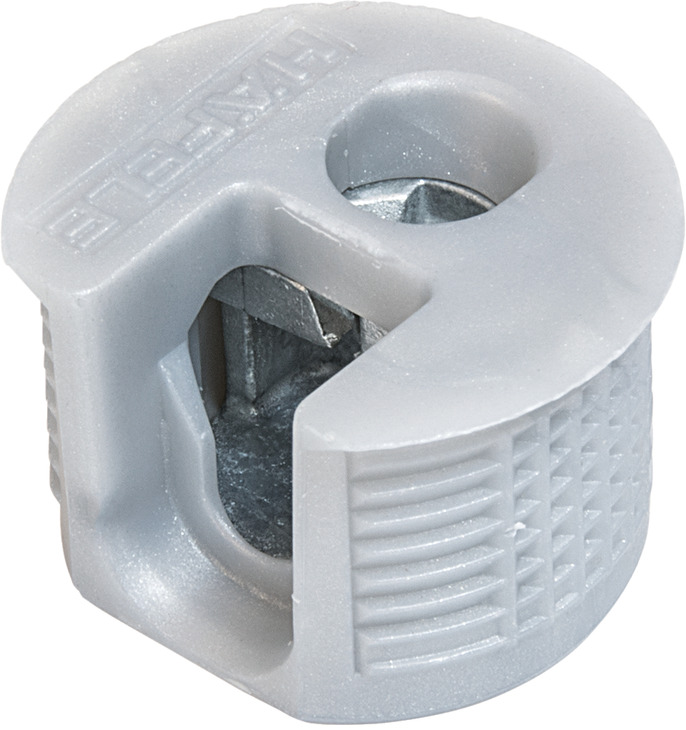

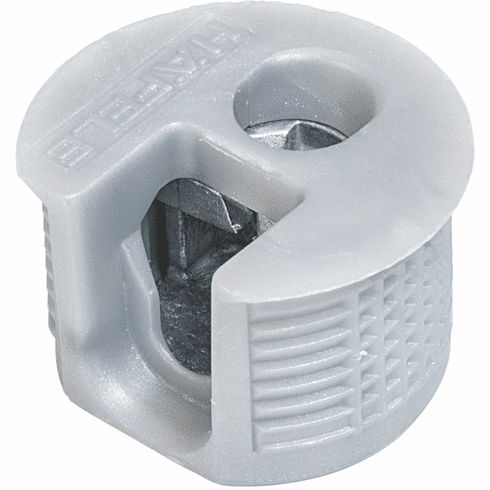

Hafele 263.52.205 Connector Housing, Rafix 20 Flush System

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.52.205

  Product Title: Connector Housing, Rafix 20 Flush System,

  Category: Connector Housing, Rafix 20 Flush System,

  Item Details …

  - For wood thickness : 16?–?19 mm

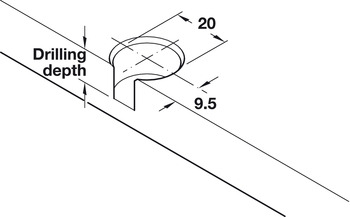

  - Dim. A : 9.50 mm

  - Drilling depth : 14.2 mm +0.2 mm

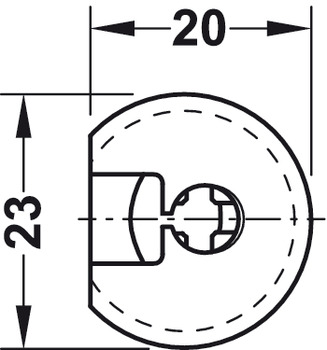

  - Drill hole Ø housing : 20.00 mm

  - Version : with rim, with ridge, with tightening element, without dowel

  - Drive : PZ2 cross slot

  - Material : Plastic, Tightening element: Zinc alloy

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.6



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Drill Bit, Flush Rafix
  • Trim Cap, for Rafix 20 Flush
