Hafele 263.15.703 Connector Housing, Rafix 20 System, without Dowel, with Ridge, Zinc For wood thickness 16 mm, nickel-plated

Product Information

• Description

  Hafele 263.15.703 Connector Housing, Rafix 20 System, without Dowel, with Ridge, Zinc
  For wood thickness 16 mm, nickel-plated



  Material : Zinc alloy

  Drive : PZ2 cross slot

  Features : With ridge

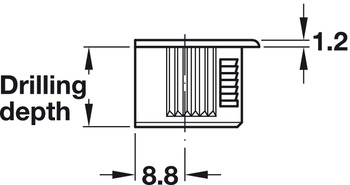

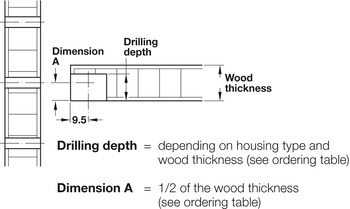

  Drilling depth : 12.7^+0.2 mm

  Diameter : Connector housing 20 mm





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.19-11.19.pdf

  Hafele 263.15.703, 263-15-703, 26315703, 263.15


  Specifications/Hafele Catalog - Page# FC11.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
