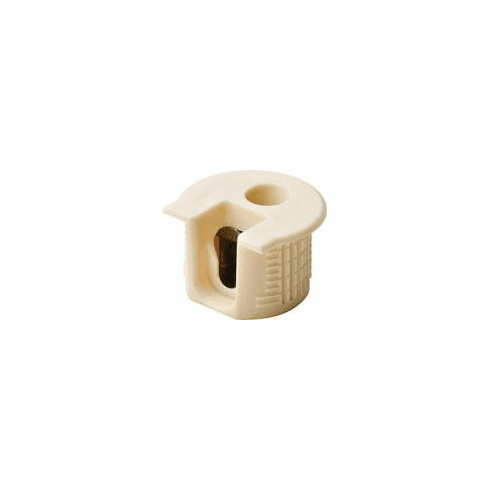

Hafele 263.14.405 Connector Housing, Rafix 20 System, without Dowel, with Ridge, Plastic For wood thickness 19 mm, beige

Product Information

• Description

  Hafele 263.14.405 Connector Housing, Rafix 20 System, without Dowel, with Ridge, Plastic
  For wood thickness 19 mm, beige



  Material : Plastic
  Zinc alloy tightening element

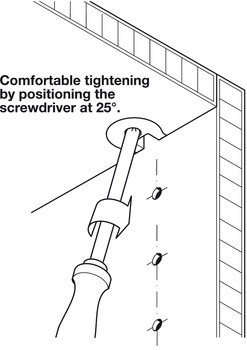

  Drive : Pozi #2

  Features : With ridge

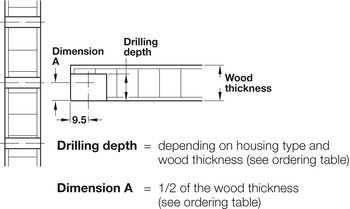

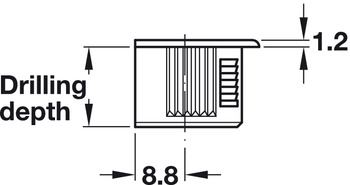

  Drilling depth : 14.2^+0.2 mm

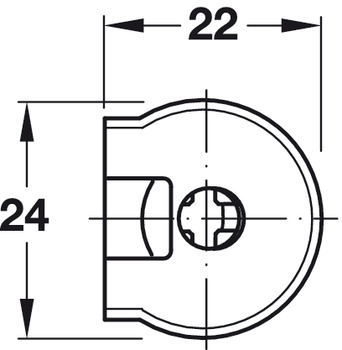

  Diameter : Connector housing 20 mm



  Optional items:
  Red Jig drilling jigs, Rafix drill guide
  Rafix Tab 20 with sliding cover cap


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.19-11.19.pdf

  Hafele 263.14.405, 263-14-405, 26314405, 263.14


  Specifications/Hafele Catalog - Page# FC11.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
