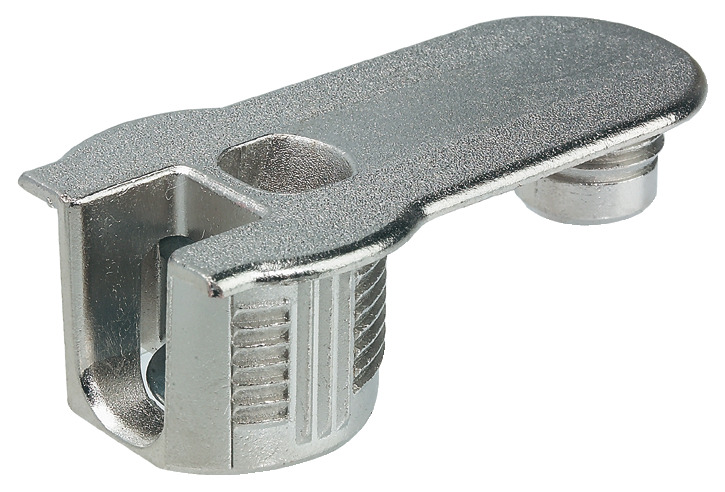

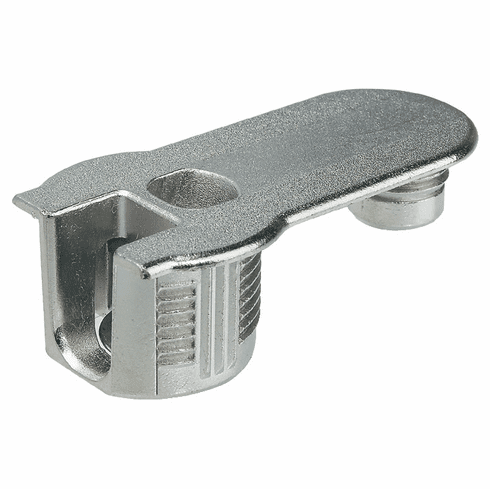

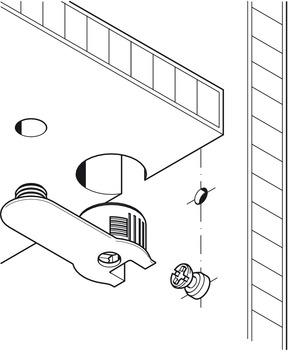

Hafele 263.13.705 Dowel Stud, Rafix SE 32 System, without Ridge, Zinc With tightening element, For wood thickness 19 mm, drilling depth D: 14.2 mm, dim. A: 9.5 mm, nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.13.705

  Product Title: Connector Housing, Rafix SE 32 System, without Ridge, Zinc, With tightening element, For wood thickness 19 mm, drilling depth D: 14.2 mm, dim. A: 9.5 mm, nickel-plated

  Category: Connector Housing, Rafix SE 32 System, without Ridge, Zinc, With tightening element, For wood thickness 19 mm, drilling depth D: 14.2 mm, dim. A: 9.5 mm, nickel-plated

  Item Details …

  - Ridge : without

  - For wood thickness : ?19 mm

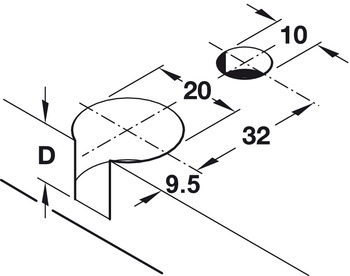

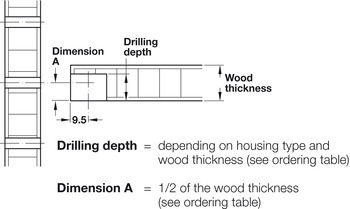

  - Dim. A : 9.50 mm

  - Drilling depth : 14.2 mm +0.2 mm

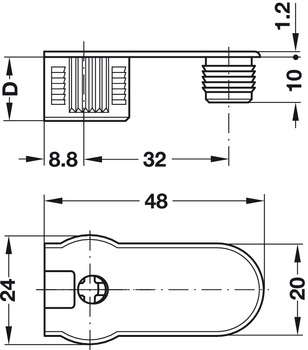

  - Drill hole Ø housing : 20.00 mm

  - Color/finish : nickel plated

  - Version : with rim, with tightening element, with dowel, without ridge

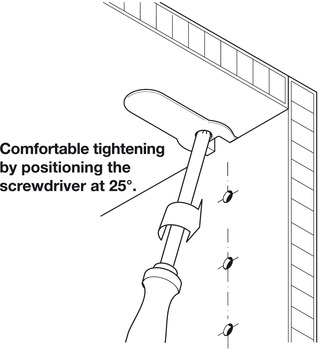

  - Drive : PZ2 cross slot

  - Material : Zinc alloy, Tightening element: Zinc alloy

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.10



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.20-11.20.pdf

  Hafele 263.13.705, 263-13-705, 26313705, 263.13


  Specifications/Hafele Catalog - Page# FC11.21: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Connecting Bolt, M20, 12 mm
  • Drilling Jig, Basic, Red
  • Connector Housing, Rafix 20 system, with dowel, plastic
