Hafele 263.12.405 Connector Housing, Rafix 32 SE System, without Ridge With tightening element, For wood thickness 19 mm, beige

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.12.405

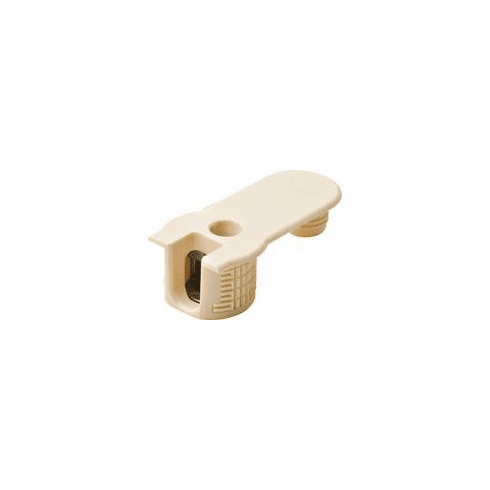

  Product Title: Connector Housing, Rafix 32 SE System, without Ridge, With tightening element, For wood thickness 19 mm, beige

  Category: Connector Housing, Rafix 20 system, with dowel, plastic, With tightening element

  Item Details …

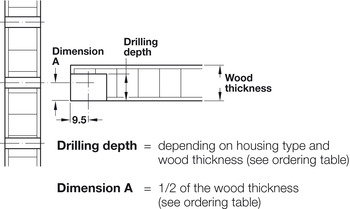

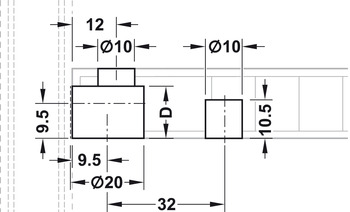

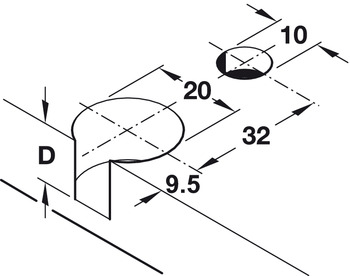

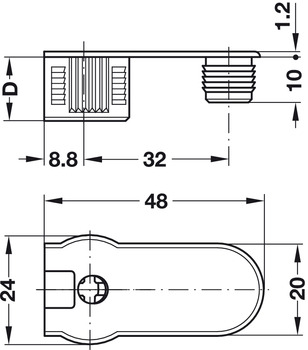

  - Dim. A : 9.50 mm

  - Drilling depth : 14.2 mm +0.2 mm

  - Drill hole Ø housing : 20.00 mm

  - Version : with rim, with tightening element, with dowel, without ridge

  - Drive : PZ2 cross slot

  - Material : Plastic, Tightening element: Zinc alloy

  - Installation : flush-mounted

  - Order reference

  - Other colors available on request.


  Additional Information …

  The colours shown are similar to RAL colours and are as close as possible to the actual standard colour. The colour shades may vary slightly due to production reasons.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.10



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.20-11.20.pdf

  Hafele 263.12.405, 263-12-405, 26312405, 263.12


  Specifications/Hafele Catalog - Page# FC11.21: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
