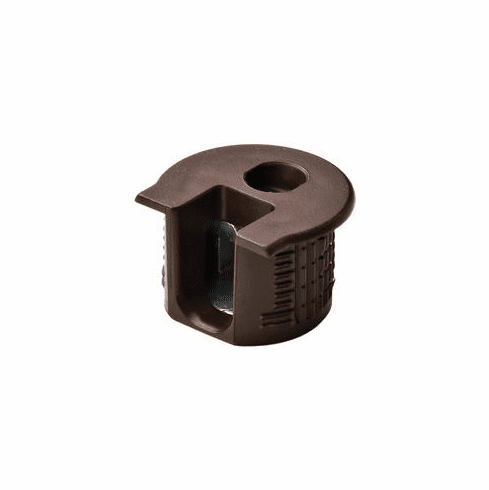

Hafele 263.10.105 Connector Housing, Rafix 20 System, without Ridge, Plastic For wood thickness 19 mm, brown

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.10.105

  Product Title: Connector Housing, Rafix 20 System, without Ridge, Plastic, with Tightening Element, For wood thickness 19 mm, brown

  Category: Connector Housing, Rafix 20 system, plastic, with Tightening Element

  Item Details …

  - Drive: Pozi #2

  - Diameter: Connector housing: 20 mm

  - Drill hole Ø housing : 20.00 mm

  - Version : with rim, with tightening element, without ridge, without dowel

  - Drive : PZ2 cross slot

  - Material : Plastic, Tightening element: Zinc alloy


  Additional Information …

  The colors shown are similar to RAL colors and are as close as possible to the actual standard colors. The color shades may vary slightly due to production reasons.
