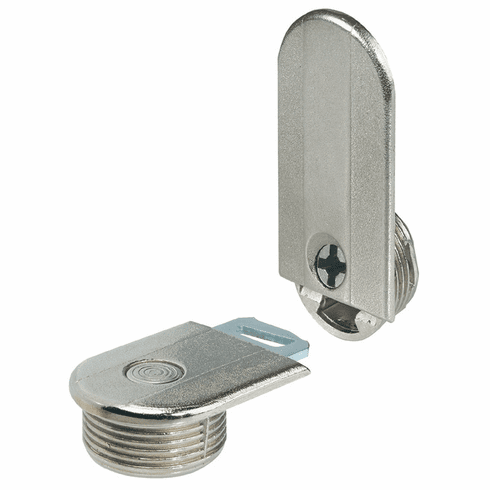

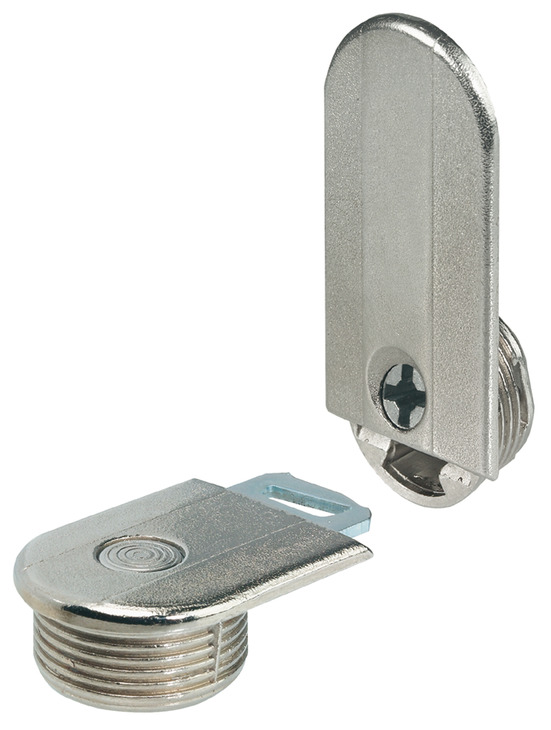

Hafele 263.00.729 Clip Connector, Solo 32 dowel: 8 mm, for wood thickness from 16 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.00.729

  Product Title: Clip Connector, Solo 32, Ø dowel: 8 mm, for wood thickness from 16 mm

  Category: Clip Connector, Solo 32, Ø dowel: 8 mm, for wood thickness from 16 mm

  Item Details …

  - With dowels

  - Clip-part with tightening element

  - Male part

  - Allows practical sub-assembly

  - Snap-in feature

  - Extremely high corner stability

  - Color/finish : nickel plated

  - For wood thickness : ?16 mm

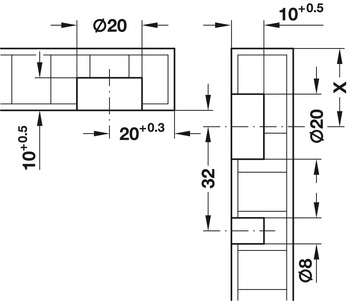

  - Drilling depth : 10 mm +0.5 mm

  - Area of application : For connections with excellent angular stability, for large and high cabinets, e.g. wardrobes

  - Version : With dowels

  - Material : Zinc alloy

  - Cup drilling Ø : 20.00 mm

  - Drive : PZ2 cross slot

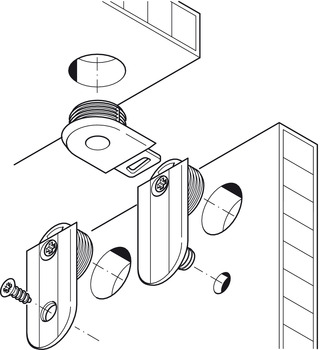

  - Installation : For press fitting

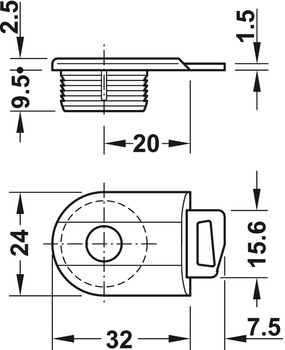

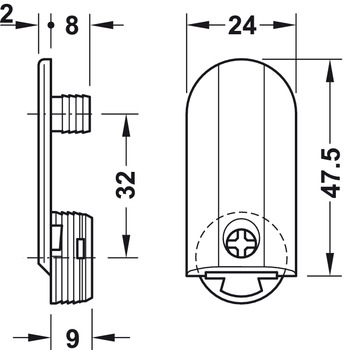

  - Supplied with:

  - 1 female element with eccentric

  - 1 male element

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.32



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.44-11.44.pdf

  Hafele 263.00.729, 263-00-729, 26300729, 263.00


  Specifications/Hafele Catalog - Page# FC11.46: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
