Hafele 262.96.946 Zipbolt Work Surface Connector, Mini-UT 11.8

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.96.946

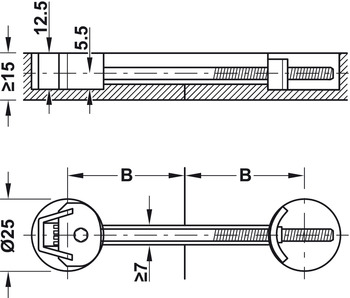

  Product Title: Zipbolt Work Surface Connector, Mini-UT, For Ø 25 mm cup drilling, 10.800

  Category: Zipbolt Work Surface Connector, Mini-UT, For Ø 25 mm cup drilling, 10.800

  Item Details …

  - For wood thickness : ?15 mm

  - Drive : Hexagon socket SW4

  - Bolt length : 102.00 mm

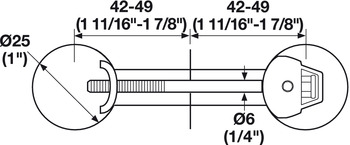

  - Center to Center : 42?–?49 mm

  - Area of application : For two butting or mitre cut worktop sectionsFor thin panels

  - Material : Housing: zinc alloy and plasticBolt and pressure plate: steel

  - Color/finish : Housing, bolt and pressure plate: zinc plated, Housing, bolt and pressure plate: Galvanized

  - Version : Bolt and pressure plate pre-mounted

  - Installation : For recess mounting, with rapid-action clamping


  Additional Information …

  Requires 4 mm hex driver

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.80



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.52-11.53.pdf

  Hafele 262.96.946, 262-96-946, 26296946, 262.96


  Specifications/Hafele Catalog - Page# FC11.56: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
