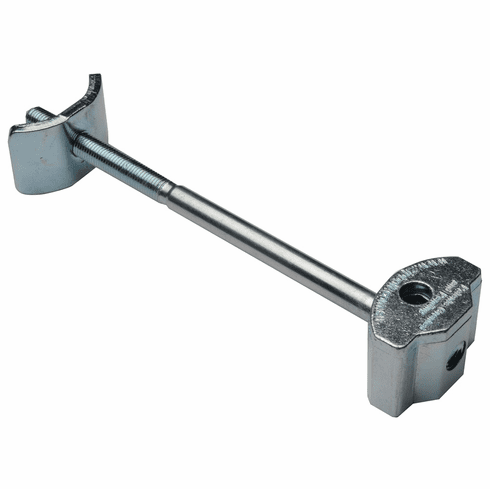

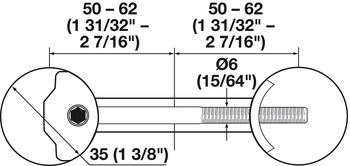

Hafele 262.96.840 Draw-Bolt UT For dia. 35 mm cup drilling, 10.600

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.96.840

  Product Title: Zipbolt Joint Connector, Draw-Bolt UT, For Ø 35 mm cup drilling

  Category: Zipbolt Joint Connector, Draw-Bolt UT, For Ø 35 mm cup drilling

  Item Details …

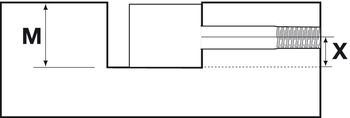

  - (X) Shaft center = 10 mm (25/64")

  - (M) = Minimum bore depth: 20 mm (51/64")

  - Requires 5 mm hex bit

  - Additional Zipbolts are available by request

  - For wood thickness : ?23 mm

  - Drive : Hexagon socket SW5

  - Area of application : Zipbolt connectors are ideal for use in: countertops, staircase assembly, furniture construction, millwork joinery and more

  - Material : Housing: zinc alloy and plasticBolt and pressure plate: steel

  - Color/finish : Housing, bolt and pressure plate: zinc plated, Housing, bolt and pressure plate: Galvanized

  - Version : Bolt and pressure plate pre-mounted

  - Installation : For recess mounting, with rapid-action clamping


  Additional Information …

  Set the cordless drill on low speed torque, tightening torque max. 10 Nm.
