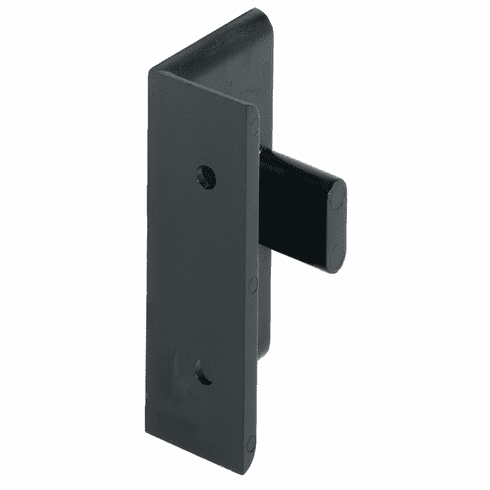

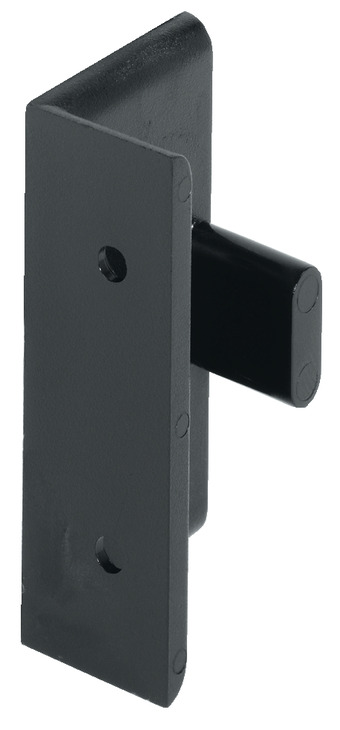

Hafele 262.51.391 Suspension Fitting, AD 30 Angled Component Keku System, with Varianta screws

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.51.391

  Product Title: Suspension Fitting, AD 30 Angled Component, Keku System, with Varianta screws

  Category: Suspension Fitting, AD 30 Angled Component, Keku System, with Varianta screws

  Item Details …

  - Do not treat with chemical solutions or aggressive greases

  - Do not adjust by hammering

  - Double partition fittings are used for:

  - Attaching sound insulation to the door leaf

  - Construction of 2-leaf frame doors

  - Doubling of cabinet sides in the door recess area

  - Connecting frame elements

  - Linking elements

  - Manufacturing sandwich elements

  - Installing lightweight partition walls

  - Fixing wall elements (cabinet construction)

  - Door construction with panel design

  - Installation : With wood screws

  - Color/finish : Black

  - Area of application : Double partition fittings are used for:Construction cavity-type doorsDouble partitions on cabinet sidesConnecting frame elementsLinking elementsInstalling lightweight partitionsMounting wall elements (booth construction)

  - Material : Plastic

  - For series drilled holes : System 32


  Additional Information …

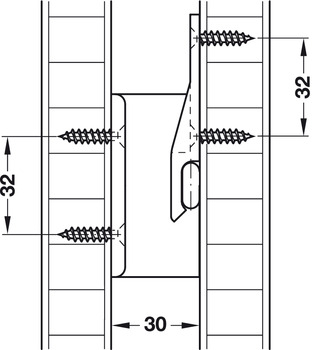

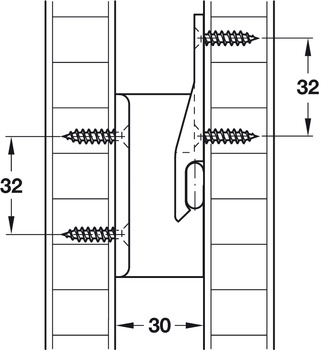

  For Panel distance of 30 mmFor Varianta screw mounting, use 3mm or 5mm.For wood screw mounting, use #8 flat head.Must order screws separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

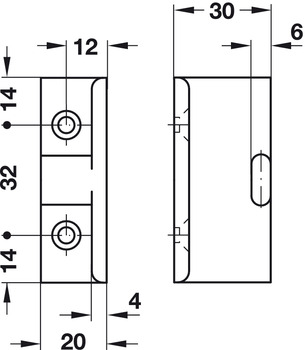

  Technical Data Keku AD15 and AD30

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.85



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.48-11.48.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Suspension Fitting, Panel Component (choose one):


  • Keku, with wood screws Keku, with Varianta screws

    262.49.356 262.49.357

    Click to order Click to order



  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Euro screw, Häfele, Varianta, countersunk head, PZ, steel, fully threaded, for Ø 5 mm drill holes in wood
  • Suspension Fitting, Panel Component
  • Chipboard screw, Hospa, PZ cross slot, partially threaded
