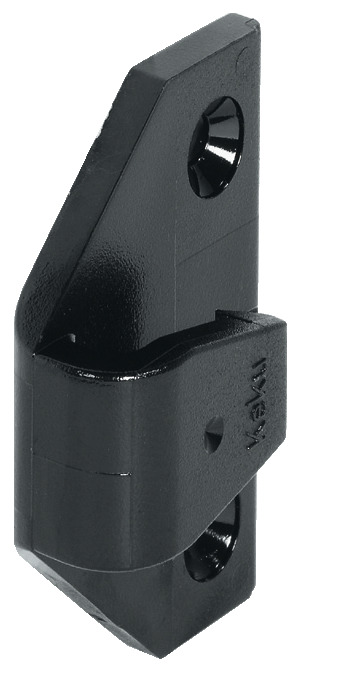

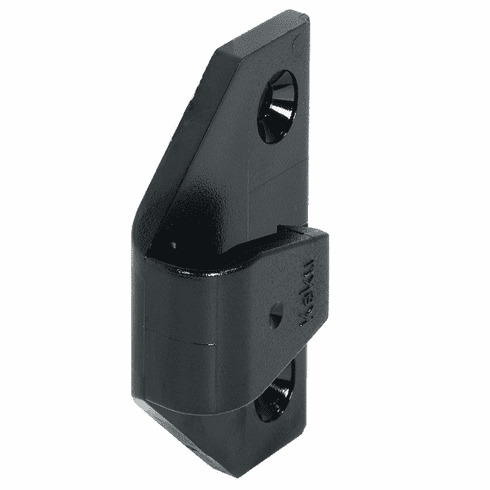

Hafele 262.50.390 Push-in Fitting, ASR Frame Component Keku System, with wood screws

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.50.390

  Product Title: Push-in Fitting, ASR Frame Component, Keku System, with wood screws

  Category: Push-in Fitting, ASR Frame Component, Keku System

  Item Details …

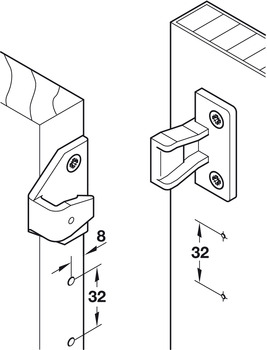

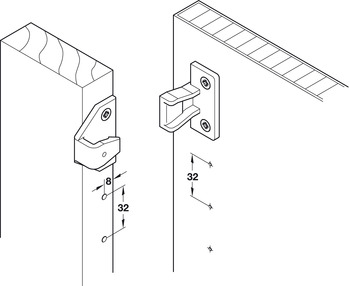

  - For fastening panels to frames

  - Temperature range: -100°C (-148°F) to +135°C (+275°F)

  - Do not treat with chemical solutions or aggressive greases

  - Do not adjust by hammering

  - Not for suspended loads such as ceiling panels

  - Color/finish : Black

  - Area of application : For fixing panels to frame constructions and supporting profiles of the Häfele Keku R room system

  - Material : Plastic

  - For series drilled holes : System 32


  Additional Information …

  For Varianta screw mounting, use 3mm or 5mm.For wood screw mounting, use #8 flat head.Must order screws separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Technical Data Keku AS and ASR

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.84



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.47-11.47.pdf

  Hafele 262.50.390, 262-50-390, 26250390, 262.50


  Specifications/Hafele Catalog - Page# FC11.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Push-in Fitting, AS Panel Connector (choose one):


  • Keku, Black, With Varianta screws Keku, Black, With wood screws Keku, White, With wood screws

    262.50.358 262.50.359 262.50.730

    Click to order Click to order Click to order



  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Euro screw, Häfele, Varianta, countersunk head, PZ, steel, fully threaded, for Ø 5 mm drill holes in wood
  • Push-in Fitting, AS Panel Connector
