Hafele 262.49.366 EH Frame Connector Keku System, with Varianta screws

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.49.366

  Product Title: EH Frame Connector, Häfele Keku EH, Keku System, with Varianta screws

  Category: EH Frame Connector, Häfele Keku EH, Keku System

  Item Details …

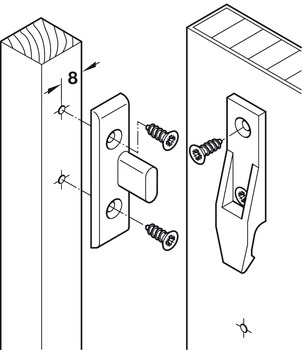

  - For fastening panels to frames

  - Temperature range: -100°C (-148°F) to +135°C (+275°F)

  - Do not treat with chemical solutions or aggressive greases

  - Do not adjust by hammering

  - Not for suspended loads such as ceiling panels

  - Color/finish : Black

  - Area of application : For fastening panels to frame structures

  - Material : Plastic

  - For series drilled holes : System 32


  Additional Information …

  For Varianta screw mounting, use 3mm or 5mm.For wood screw mounting, use #8 flat head.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

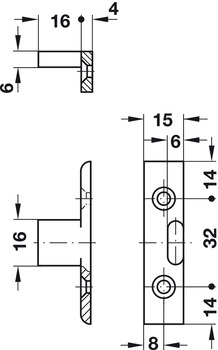

  Technical Data Keku EH and EHS

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.85



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.48-11.48.pdf



  Hafele 262.49.366 Keku Frame Component F.Var.Screw (7X2X3 Cm) - 200 Pcs


  Product Specifications:
  Contact us for more information.
