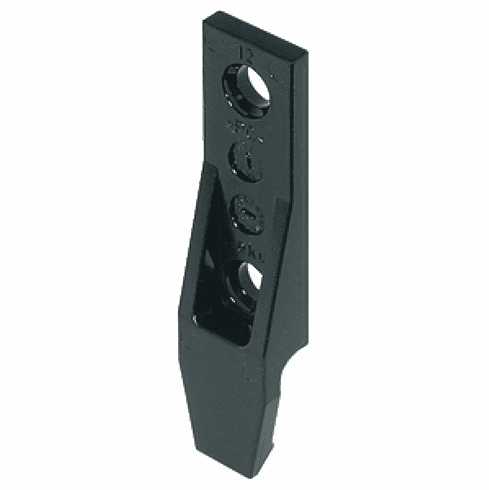

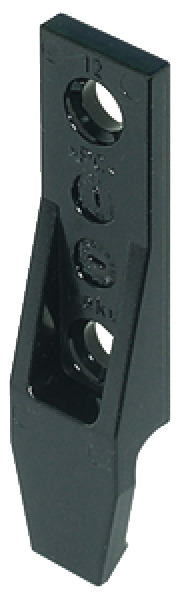

Hafele 262.49.357 Suspension Fitting, Panel Component Keku, with Varianta screws

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.49.357

  Product Title: Suspension Fitting, Panel Component, Keku, with Varianta screws

  Category: Suspension Fitting, Panel Component, Keku

  Item Details …

  - Color/finish : Black

  - Area of application : For fixing panels to frame constructions and supporting profiles of the Häfele Keku R room system

  - Material : Plastic (polycarbonate)

  - For series drilled holes : System 32


  Additional Information …

  Do not treat with chemical solutions or aggressive grease.Do not adjust by hammering.The combined use of panel components with and without a mounting lug on one panel reduces the snap-in function of the overall panels.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Technical Data Keku EH and EHS

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.85



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.48-11.48.pdf

  Hafele 262.49.357, 262-49-357, 26249357, 262.49


  Specifications/Hafele Catalog - Page# FC6.75: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  EH Frame Connector, Häfele Keku EH (choose one):


  • Keku System, with wood screws Keku System, with Varianta screws

    262.49.365 262.49.366

    Click to order Click to order



  EHS Frame Component, with Side Guide (choose one):


  • Keku suspension fitting, with wood screws Keku suspension fitting, with Varianta screws

    262.49.367 262.49.368

    Click to order Click to order



  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Euro screw, Häfele, Varianta, countersunk head, PZ, steel, fully threaded, for Ø 5 mm drill holes in wood
  • EH Frame Connector, Häfele Keku EH
  • Suspension Fitting, AD 15 Angled Component
  • Suspension Fitting, AD 30 Angled Component
