Hafele 262.47.022 Modular Connector, Non-Locking Steel, Panel thickness 19 mm

Product Information

• Description

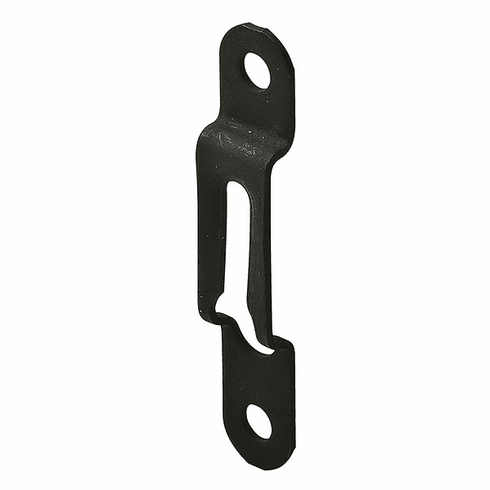

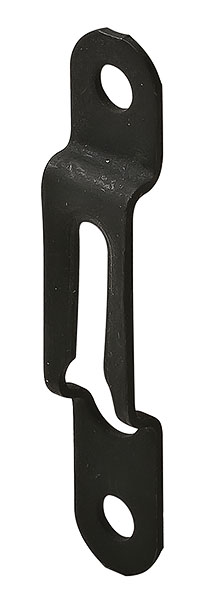

  Hafele 262.47.022 Modular Connector, Non-Locking

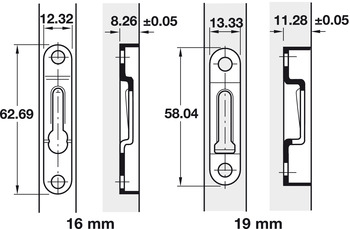

  Steel, Panel thickness 19 mm



  Material : Steel

  Color : Black phosphate

  Features : Non-locking



  Optional items:
  Connecting Screw, with Wood Screw Thread

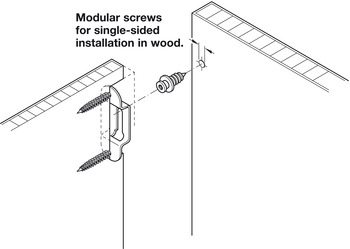

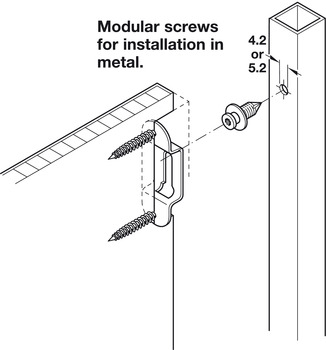

  Modular Screw, with Special Thread
  Connecting Screw, with M4 Thread
  Screw, Pan Head, #2 Phillips Drive
  Screw, Pan Head, #2 Square Drive
  Pan Head Screw with Uni-drive, Zinc-Plated
  Counter Plate, Stainless Steel


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.50-11.51.pdf

  Hafele 262.47.022, 262-47-022, 26247022, 262.47


  Specifications/Hafele Catalog - Page# FC11.53: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
