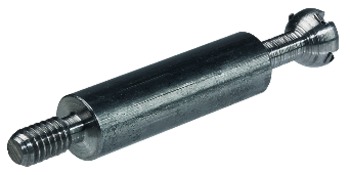

Hafele 262.28.937 Connecting Bolt, S100, Minifix System, with M4 thread Bolt hole 8 mm, bolt head 7 mm, Drilling distance B: 34 mm, galvanized, thread length L: 7.5 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.28.937

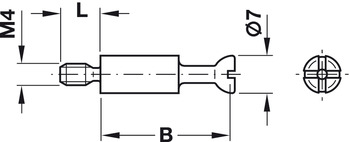

  Product Title: Connecting Bolt, S100, Minifix® System, with M4 thread, Bolt hole 8 mm, bolt head Ø 7 mm, Drilling distance B: 34 mm, galvanized, thread length L: 7.5 mm

  Category: Connecting Bolt, S100, Minifix® System, with M4 thread, Bolt hole 8 mm, bolt head Ø 7 mm

  Item Details …

  - Thread : M4

  - Thread length : 7.50 mm

  - Color/finish : Zinc plated

  - Material : Steel

  - Drive : PZ2 cross slot, Flat blade

  - Bolt hole : 8.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.21



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.30-11.33.pdf

  Hafele 262.28.937, 262-28-937, 26228937, 262.28


  Specifications/Hafele Catalog - Page# FC11.33: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Connector Housing, Häfele Minifix® 15, zinc alloy, without rim
  • Connector Housing, Häfele Minifix 12, zinc alloy, without rim
  • Spreading Dowel, M4 Internal Thread
  • Glue-in sleeve, Plastic (polyamide)
  • Sleeve, With M4 internal thread, steel
