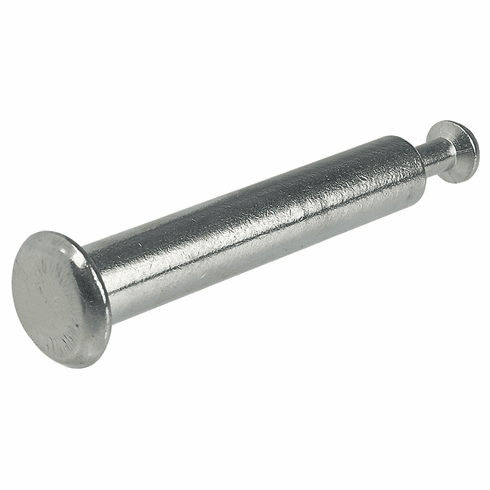

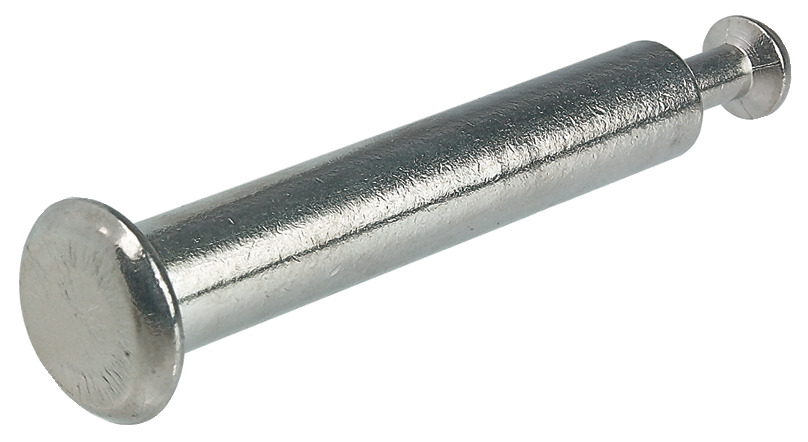

Hafele 262.28.160 Capped Bolt, Minifix for 8 mm holes, Side Panel Thickness W: 19 mm, Drilling Dimension B: 34 mm, Bronzed

Product Information

• Description

  Hafele 262.28.160 Capped Bolt, Hafele Minifix

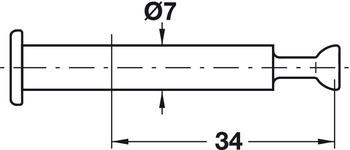

  for 8 mm holes, Side Panel Thickness W: 19 mm, Drilling Dimension B: 34 mm, Bronzed



  Material : Steel

  Drill hole diameter : 8 mm





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.30-11.33.pdf

  Hafele 262.28.160, 262-28-160, 26228160, 262.28


  Specifications/Hafele Catalog - Page# FC11.36: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
