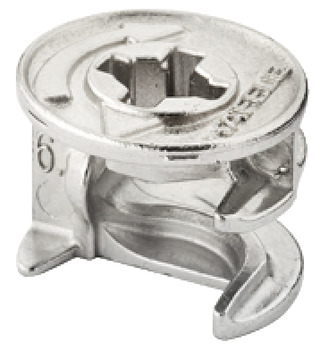

Hafele 262.26.032 Connector Housing, Minifix For wood thickness from 15 mm and above, unfinished

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.26.032

  Product Title: Connector Housing, Häfele Minifix® 15, Zinc alloy, Without rim, For wood thickness from 15 mm and above, unfinished

  Category: Connector Housing, Häfele Minifix® 15, zinc alloy, without rim,

  Item Details …

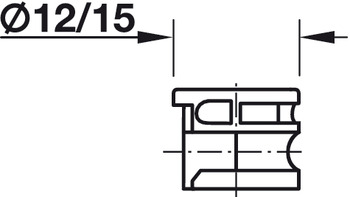

  - Drill hole Ø housing : 15.00 mm

  - Area of application : Wood thickness from 12 mm

  - Material : Zinc alloy

  - Suitable for : All connecting bolts from the Minifix® system


  Additional Information …

  Depending on the choice of connecting bolt, the bolt drill hole diameter is 5, 7 or 8 mm.Distance from centre of Minifix® housing to front edge of panel (24 or 34 mm), depending on choice of connecting bolt.
