Hafele 262.12.804 Miter Joint Connector, Minifix GV, for One-Sided Installation Sleeve 8 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.12.804

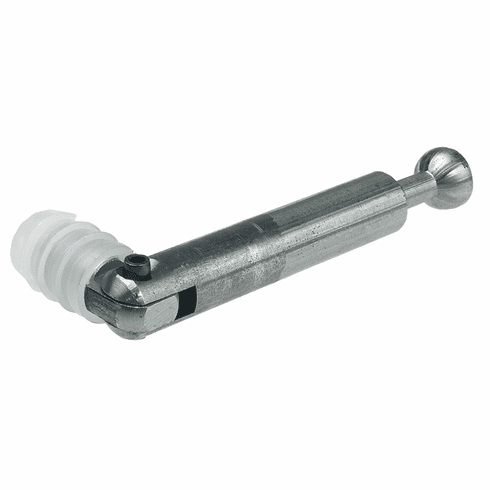

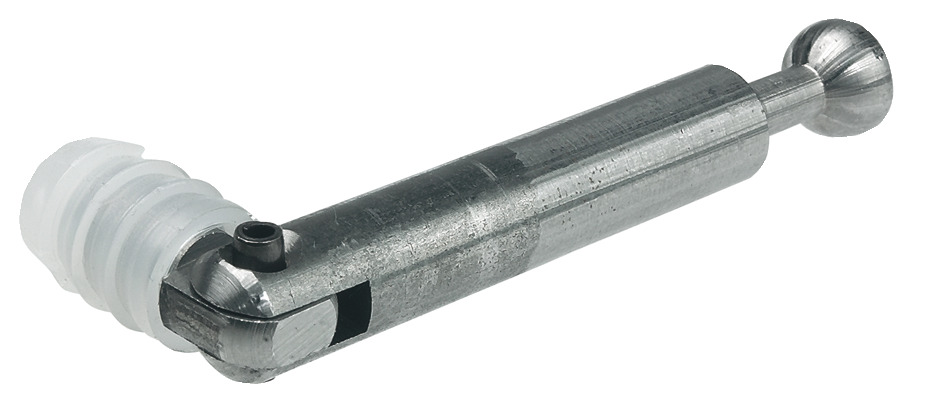

  Product Title: Miter Joint Connector, Minifix® GV, for One-Sided Installation, Sleeve 8 mm

  Category: Miter Joint Connector, Minifix® GV, for One-Sided Installation, Sleeve 8 mm

  Item Details …

  - A practical method of joining miter-jointed cabinets and profiles without costly gluing, and making large panels of furniture with miter joints

  - Minifix® GV miter joint connectors are hinged connecting bolts, capable of securing miter joints at any angle from 90° to 180°

  - These connectors should preferably be used only with Ø15 mm zinc die-cast Minifix® cams

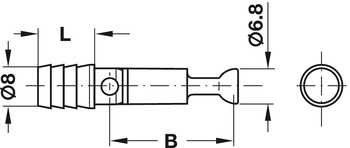

  - Thread length : 11.00 mm

  - Drilling dim. : 44.00 mm

  - Color/finish : Zinc plated

  - Area of application : For miter angles of 90° to 180°

  - Version : With joint

  - Material : Steel

  - Thread : Polyamide sleeve with harpoon-type thread

  - Bolt hole : 7.00 mm


  Additional Information …

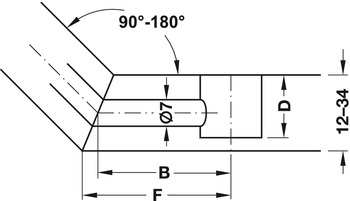

  The inset distances F in mm in the following table apply to mitre-joint connecting bolts with a drilling dimension B 44 mm. For drilling distance B 24 mm, 20 mm must be deducted from the specified inset dimensions. The dimension for drilling depth D corresponds to the drilling depth D of the Minifix® connector housing that is used.Please use connector housing without rim.
