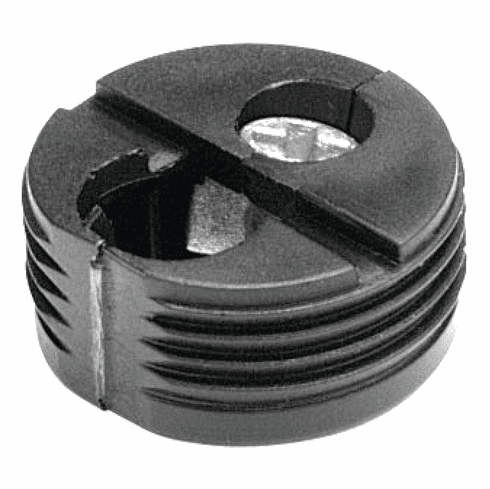

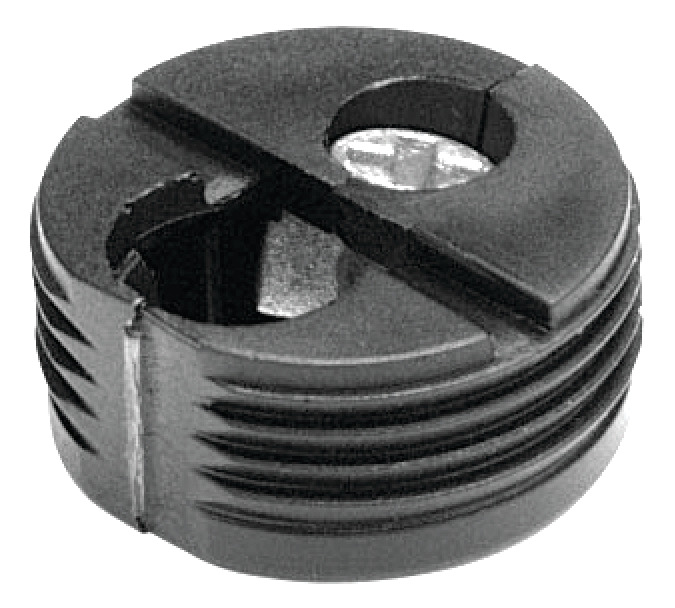

Hafele 261.95.100 DC-25 Connector Dowel/Cam, plastic, zinc, brown

Product Information

• Description

  Manufacturer: Hafele
  Item: 261.95.100

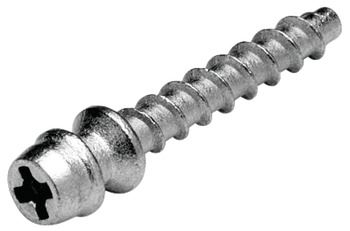

  Product Title: DC-25 Dowel/Cam Connector, with Zinc Alloy Bolt, DC-25, Ixconnect, Brown

  Category: DC-25 Dowel/Cam Connector, with Zinc Alloy Bolt, DC-25, Ixconnect

  Item Details …

  - Dowel is inserted into edge of shelf

  - Cam is inserted into upright

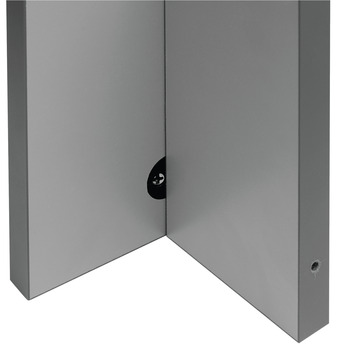

  - Even after connector is installed, panels can be stacked

  - Area of application : For 12 mm and 25 mm

  - Material : Plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.40



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.41-11.41.pdf

  Hafele 261.95.100, 261-95-100, 26195100, 261.95


  Specifications/Hafele Catalog - Page# FC11.44: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
