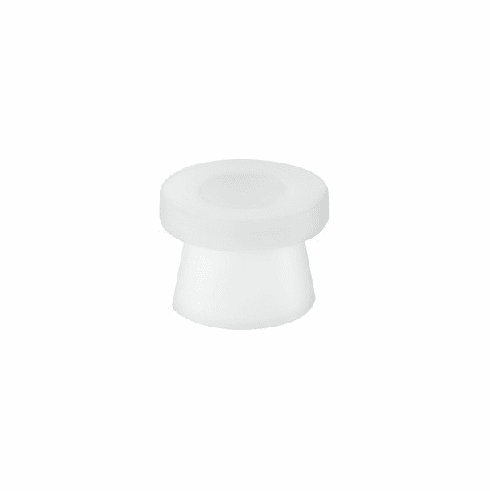

Hafele 261.30.790 Dovetail Sleeve, for Screw Mounting Plastic, white

Product Information

• Description

  Manufacturer: Hafele
  Item: 261.30.790

  Product Title: Dovetail Sleeve, for Screw Mounting, plastic, white

  Category: Dovetail Sleeve, for Screw Mounting, plastic, white

  Item Details …

  - New applications with biscuit jointer:

  - Mitre-joint connector and double partition fitting

  - for quick release connections

  - Long sleeve for stable shelf connections, even without rail

  - When used with rail:

  - For fixed, reinforced connections

  - For subsequent stabilisation of high and bulging components

  - Color/finish : White

  - Area of application : For mounting in recesses, as shelf connector for construction base panels, for shelf unit and cabinet constructions, easily removable, can also be used as double partition fitting and for mitre joint connections when used without track

  - Suitable for : Rail dovetail connector or direct dovetail connector (with milled fixing profile)

  - Material : Plastic

  - Installation : For screw fixing, for concealed installationDovetail connector: Installation and disassembly without tools

  - Installation description : The depth of the shelf can be fixed by tightening the rear sleeve more firmly. If necessary, add a depth gauge to the construction.The tighter the screw of the dovetail sleeves is tightened, the more difficult it is to slide the shelf on and off again.Do not damage the dovetail slopes when drilling the rail! The shelf may then be difficult to slide in and the sleeve may be worn excessively in the event of frequent disassembly.
