Hafele 261.30.030 Dovetail Connector Rail, aluminum, natural, 3m

Product Information

• Description

  Manufacturer: Hafele
  Item: 261.30.030

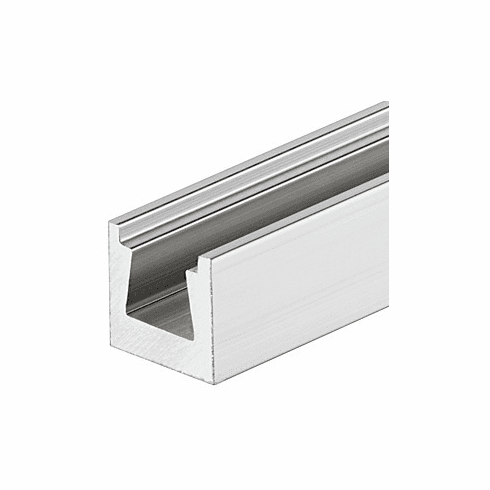

  Product Title: Rail, with Dovetail Groove, Un-drilled

  Category: Rail, with Dovetail Groove,

  Item Details …

  - Provides solid reinforcing connections; self-reinforces if several shelves are used

  - Stabilizes high and protruding components

  - Concealed, tool less installation for shelves

  - Easy to dismantle

  - Length : 3,000.00 mm

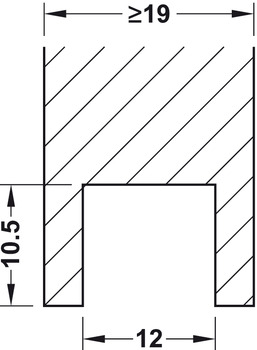

  - For wood thickness : ?19 mm

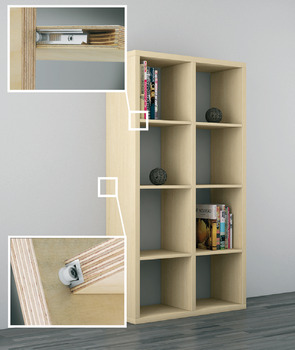

  - Area of application : For mounting in recessesUse as shelf connector for construction base panelsFor shelf and cabinet constructionsCan be used as double partition fitting and for miter joint connections

  - Material : Aluminum

  - Color/finish : blank

  - Installation : For recess mounting

  - Order reference

  - Special lengths available from an order quantity of 100 pieces on request.


  Additional Information …

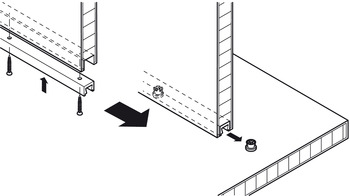

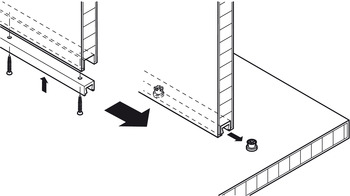

  Set depth of shelf by tightening the rear sleeve more firmly. Add a depth stop to the structure if necessary. The tighter the dovetail sleeve screws are tightened, the more difficult it is to slide in and remove the shelves.
