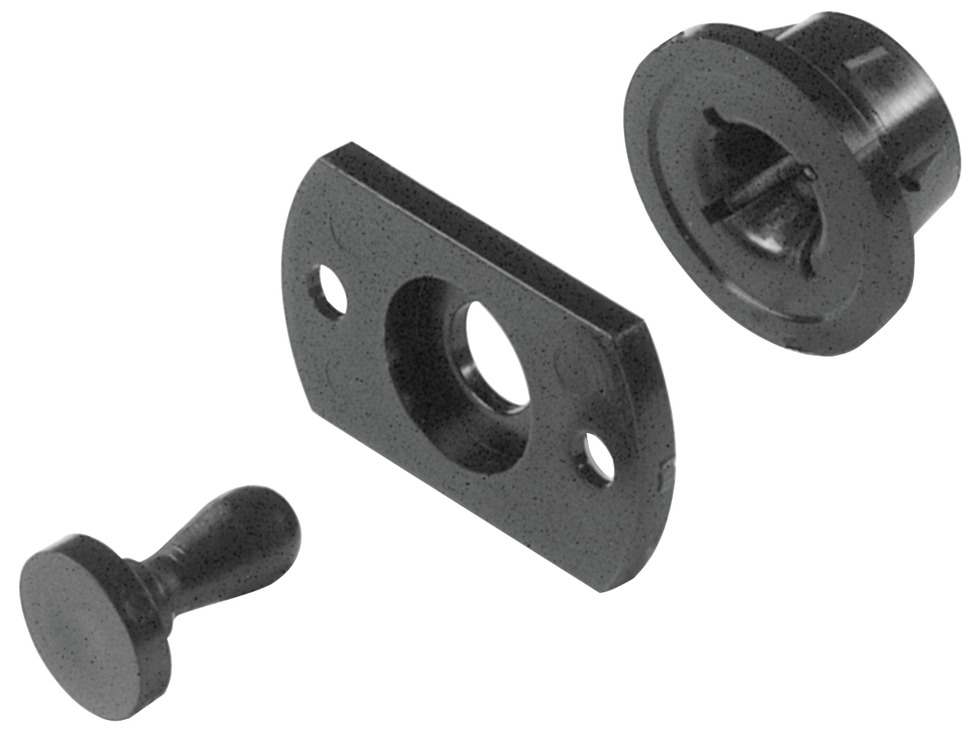

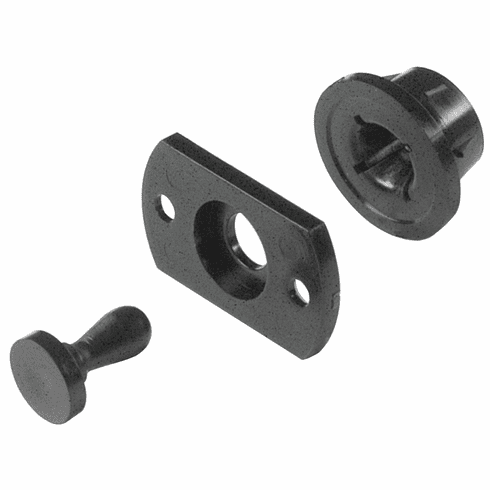

Hafele 260.71.303 Speaker Panel Connector, Plastic, Black

Product Information

• Description

  Manufacturer: Hafele
  Item: 260.71.303

  Product Title: Speaker Panel Connector, Plastic, Black,

  Category: Speaker Panel Connector, Plastic, Black, 260.71.303



  Item Details …

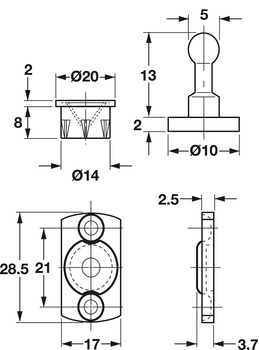

  - Pin floats in mounting plate for flexible drilling tolerances

  - Use #5 flat head screw

  - Color/finish : Black

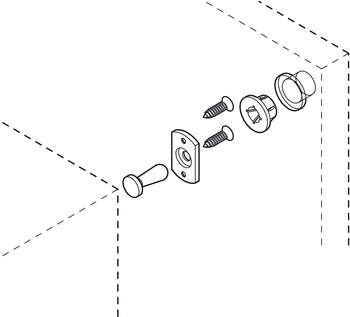

  - Area of application : To attach and remove panels, frames, etc. without tools

  - Material : Plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.92



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.104-11.104.pdf

  Hafele 260.71.303, 260-71-303, 26071303, 260.71


  Specifications/Hafele Catalog - Page# FC11.110: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
