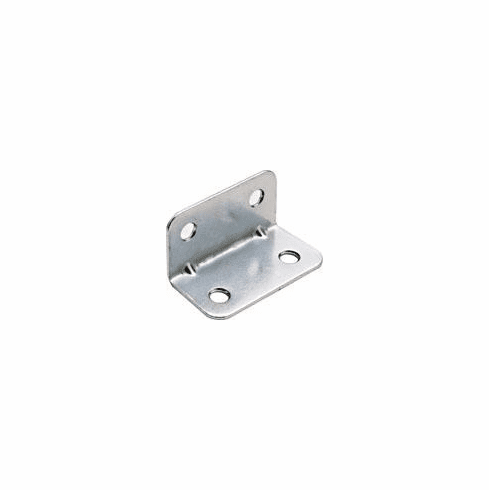

Hafele 260.46.910 Bracket, steel, zinc plated, 27mm x 27mm x 51mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 260.46.910

  Product Title: Angle Bracket, Steel, 27 x 27 x 51 mm

  Category: Angle Bracket, Steel, 27 x 27 x 51 mm

  Item Details …

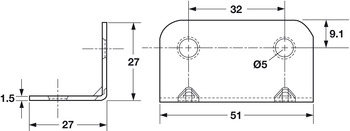

  - Uses pan head #7 screws

  - Material : Steel

  - Leg length : 27?/?27 mm

  - Width : 51.00 mm

  - Material thickness : 1.50 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.70



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.110-11.113.pdf

  Hafele 260.46.910, 260-46-910, 26046910, 260.46


  Specifications/Hafele Catalog - Page# FC11.118: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
