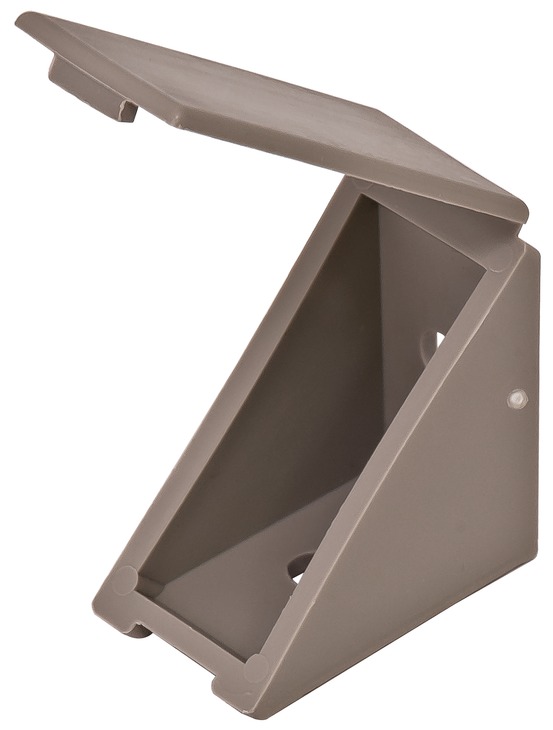

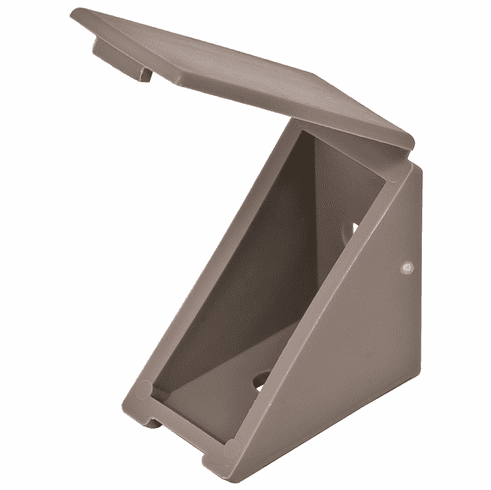

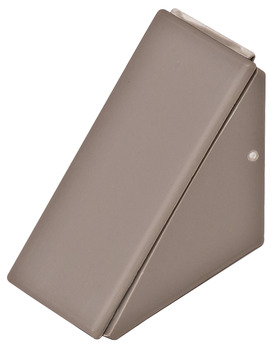

Hafele 260.24.541 Angle Bracket, with Attached Cover Cap, 19 x 34 x 34 mm Gray

Product Information

• Description

  Manufacturer: Hafele
  Item: 260.24.541

  Product Title: Angle Bracket, with Attached Cover Cap, 19 x 34 x 34 mm, Gray

  Category: Angle Bracket, with Attached Cover Cap, 19 x 34 x 34 mm,

  Item Details …

  - Use #8 flat head screw

  - Small and inconspicuous

  - Allows easy screw mounting of various furniture components including back panels and rails

  - Material : Plastic

  - Screw holes : With attached cover cap

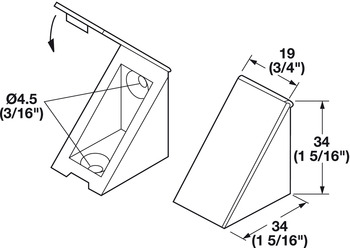

  - Leg length : 34 / 34 mm

  - Width : 19.00 mm

  - Installation : Boring is not required due to surface mounting

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Angle Bracket Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.71

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.156



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.101-4.101.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Angle Bracket, Steel, for Plastic Brackets
